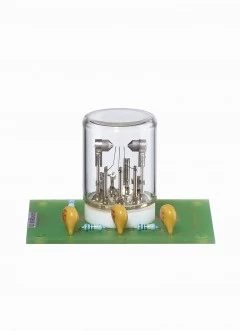

High Output Heraeus Xenon Flash Lamp
Description
Heraeus manufactures a wide range of cool running xenon flash lamps, devices which efficiently convert electrical energy stored in a capacitor into a high intensity light flash.
All the lamps use materials which are specially selected for high performance and long life. They are manufactured using high temperature and high vacuum processing, which ensures a high integrity product. Finally, each lamp is put through rigorous testing schedules to ensure that quality standards are consistently met.
The Heraeus Xenon Flash lamps can be run up to an average power of 16 Watt and they are designed specifically for use in photometric instruments.
Spectral Output
Xenon lamps have a spectral distribution which ranges from the ultraviolet through the visible to the infrared, making them one of the few wide band illumination sources available.
The spectral output, especially in the low UV, depends on the window material used. Spectral transmission ranges for available envelope/window materials are:
- UV glass: 190 - 3500 nm
- Borosilicate glass: 300 - 4500 nm
Arc Lengths
Xenon flash lamps can be manufactured with any arc gap in the range 1.5mm to 10mm. Experimentation on lamps with different arc gaps indicates that optimal arc stability, leading to high signal to noise ratios, is achieved with
arc gaps in the 2.0mm to 5.0mm range. Heraeus xenon flash lamps are offered within this range and utilise two or three trigger electrodes to stabilise the arc across the gap, combining high performance with significantly improved lifetime.
Lamp Selection
Heraeus xenon flash lamps are available in three versions:
- The BX range are 7 W standard output small bulb xenon lamps for use with a separate trigger transformer.
- The AX range are 16 W high output small bulb xenon lamps for use with a separate trigger transformer.
- The EX range are 16 W high output xenon lamps, similar to the AX range, but with an extended lamp envelope for longer lifetime and improved performance.
High Output Heraeus Xenon Flash Lamp
Specifications |
|
|---|---|
| Type Of Lamp: | Xenon |
| Output: | 16 Watts |
| Bulb Size: | Small |
| Arc Gap: | 2.0 - 5.0 mm |
Features
- UV or borosilicate glass window (190 or 300 nm)
- Low noise and excellent flash to flash stability due to precise triggering
- Precise electrode positioning
- Lifetime > 109 flashes
- EXE Long Life series – improved performance
- For use with external trigger transformer
Applications
Whilst xenon lamps are suitable for many white light industrial applications the high quality, high performance range of Heraeus xenon lamps is expressly intended for photometric instrumentation applications such as:
- UV / visible spectrophotometry
- Fluorescence spectroscopy
- Liquid chromatography
- Photo-acoustic spectroscopy
- Colour analyzers
- Medical instrumentation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Heraeus Xenon Flash Lamps are suitable for photometric instrumentation applications such as UV/visible spectrophotometry, fluorescence spectroscopy, liquid chromatography, photo-acoustic spectroscopy, color analyzers, and medical instrumentation.
Xenon lamps have a spectral distribution which ranges from the ultraviolet through the visible to the infrared, making them one of the few wide band illumination sources available.
A Heraeus Xenon Flash Lamp is a device that efficiently converts electrical energy stored in a capacitor into a high intensity light flash.
The available envelope/window materials for Heraeus Xenon Flash Lamps are UV glass (190 - 3500 nm) and Borosilicate glass (300 - 4500 nm).
Xenon flash lamps can be manufactured with any arc gap in the range 1.5mm to 10mm.
