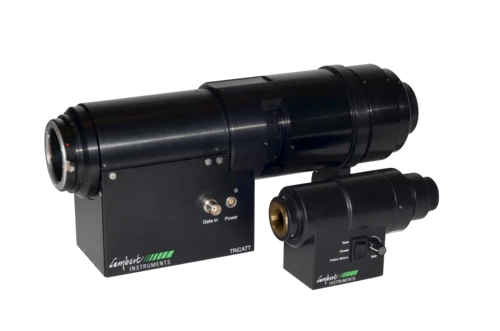

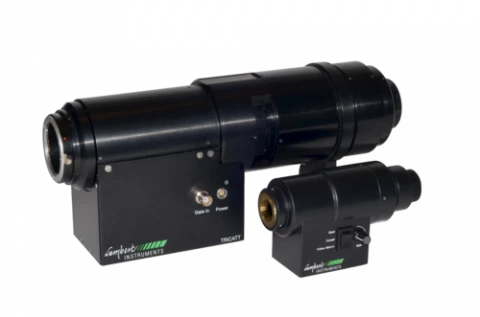

TRiCATT 18 Time-Resolved Intensified Camera Attachment
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Netherlands
-
Sold by:
-
On FindLight:
since 2020
Description
The TRiCATT (Time-Resolved Intensified Camera Attachment) is a cutting-edge solution designed for scientific and industrial applications that demand exceptional imaging capabilities under challenging conditions. This compact, lens-coupled image intensifier is engineered to excel in scenarios requiring low-light level imaging, ultra-short exposures through fast gating, and frequency-domain imaging using lock-in detection. The TRiCATT stands out with its ability to integrate seamlessly with existing imaging systems, thanks to its highly efficient relay lens that can be matched to any CCD or CMOS camera.
At the heart of the TRiCATT's performance is its advanced image intensifier technology. Available in 18 or 25 mm configurations, the TRiCATT offers a choice between Gen II and Gen III image intensifiers, providing unparalleled sensitivity down to the single photon level. This ensures optimal spectral bandwidth for a wide range of applications. The TRiCATT is the ideal choice for ultra-fast imaging in both the time domain and frequency domain, offering models that cater to various needs in terms of spectral sensitivity, phosphor, spatial resolution, gain, linearity, minimum gate width, and gating frequency.
For time-domain imaging, the TRiCATT is equipped with a fast gate unit (TRiCATT G40n/G2n), enabling it to function as an electro-optical shutter with repetition rates up to 2.5 MHz in burst mode. This capability is complemented by a series of intensifier control units that offer functionalities ranging from analog gain control to full digital control, including an internal trigger generator and programmable gate trains. In frequency-domain imaging, the TRiCATT M model supports gain modulation of 120 MHz and higher, facilitated by a single-chip digital synthesizer that ensures extremely low phase noise.
The TRiCATT's compact design makes it an easy fit for any imaging or spectroscopy setup, while its flexible and efficient lens coupling allows for seamless integration with CCD and CMOS cameras, supporting frame rates up to 500 fps. Additionally, the TRiCATT includes user-definable overexposure protection, ensuring the longevity and reliability of the system. This versatile and robust imaging solution is poised to meet the demands of a wide array of advanced imaging applications.
TRiCATT 18 Time-Resolved Intensified Camera Attachment
Specifications |
|
|---|---|
| Sensor Type: | CMOS, CCD |
| Full Frame Rate: | 500 fps |
| Image Intensifier Size: | 18 or 25 mm |
| Gate Width: | less than 3 ns (FWHM) |
| Gate Repetition Rates: | Up to 300 kHz/2.5 MHz burst |
| Gain Modulation: | 120 MHz (standard) and higher |
Features
- High Resolution Image Intensifiers: Gen II and Gen III image intensifiers offering the world’s highest resolution and sensitivity in the UV, visible, or near-infrared spectrum.
- Small Gate Widths: Achieve gate widths down to less than 3 ns (FWHM) with minimal jitter for precise imaging.
- High Gate Repetition Rates: Operates up to 300 kHz/2.5 MHz in burst mode for rapid imaging sequences.
- Compact Design: Easily integrates into your existing imaging or spectroscopy setup.
- Overexposure Protection: Features user-definable current limitation and an optional shutter to prevent overexposure.
- Easy Coupling: Offers flexible and efficient lens coupling to any CCD and CMOS camera, supporting up to 500 fps.
Applications
- Time-Resolved Imaging and Spectroscopy: Ultra-fast optical studies with precise timing control.
- Particle Image Velocimetry (PIV): For flow dynamics and turbulence measurements.
- Fluorescence Lifetime Imaging Microscopy (FLIM): Advanced biological and chemical imaging.
- Time-Gated Raman & Luminescence: Enhanced signal detection under high background light.
- Single-Molecule and Bioluminescence Imaging: High sensitivity down to photon level.
- Plasma Physics & Combustion Studies: Capture ultra-fast transient events.
- Solar PV & LED Characterization: In-line optical performance analysis.
- X-ray and Laser-Induced Fluorescence (LIF): Specialized imaging under extreme conditions.
Frequently Asked Questions
Yes, the TRiCATT features a highly efficient relay lens that can be matched to any CCD or CMOS camera, resulting in a flexible solution that can easily be integrated in an existing imaging system.
The TRiCATT is suitable for time-resolved imaging and spectroscopy, Particle Image Velocimetry (PIV), Laser Induced Fluorescence (LIF), Time-gated luminescence, Fluorescence Lifetime-Imaging Microscopy (FLIM), Förster Resonance Energy Transfer (FRET), Oxygen imaging, Viscosity imaging, Single-molecule imaging, Bio- and Chemiluminescence Imaging, Solar PV and LED characterization, Combustion, Time-gated Raman, Plasma physics, and X-ray Imaging.
For time-domain imaging, the intensifier is equipped with a fast gate unit (TRiCATT G40n/G2n) that enables the intensifier to operate as an electro-optical shutter. The gate unit can be operated up to repetition rates of up to 2.5 MHz in burst.
The TRiCATT has a gate width down to less than 3 ns (FWHM) with minimal jitter.
The TRiCATT is used for low-light level imaging, ultra-short exposures through fast gating, and/or frequency-domain imaging using lock-in detection.
The TRiCATT features Gen II and Gen III image intensifiers offering the world’s highest resolution and sensitivity in the UV, visible or near infrared.
