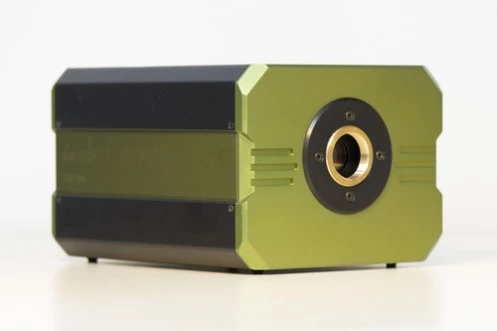

TRiCAM Time-Resolved Intensified CMOS Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Netherlands
-
Sold by:
-
On FindLight:
since 2020
Description
The TRiCAM Time-Resolved Intensified CMOS Camera is a cutting-edge imaging solution designed for both scientific and industrial applications that demand exceptional performance in low-light conditions, ultra-short exposure times, and frequency domain imaging. This advanced camera system is equipped with a fast CMOS sensor that is fiber-optically coupled to an image intensifier, ensuring optimal transmission efficiency and high sensitivity down to the single photon level. With an acquisition speed of up to 162 frames per second, the TRiCAM is engineered to deliver unparalleled imaging capabilities.
As the premier choice for ultra-fast imaging, the TRiCAM excels in both time-domain and frequency-domain applications. For time-domain imaging, the camera is integrated with a timing pulse generator and gate-unit, known as the TRiCAM G. This unit includes the LI-Capture software, which provides comprehensive control over gate width, gate frequency, delay, gain, and binning. Additionally, the TRiCAM G offers two synchronized TTL output signals for driving pulsed lasers or LEDs, enhancing its versatility in various imaging scenarios.
In frequency domain imaging, the TRiCAM M model supports gain modulation of 120 MHz and higher, facilitated by an external signal generator. This capability is powered by a single-chip digital synthesizer, ensuring very low phase noise and making the TRiCAM an integral component of the Lambert Instruments LIFA system for Fluorescence Lifetime Imaging Microscopy (FLIM). The camera's design is highly customizable, allowing it to be equipped with the image intensifier that best suits specific application needs. With a range of models available, the TRiCAM can cater to diverse requirements in spectral sensitivity, phosphor, spatial resolution, gain, linearity, minimum gate width, and gating frequency.
TRiCAM Time-Resolved Intensified CMOS Camera
Specifications |
|
|---|---|
| Sensor Type: | CMOS |
| # Pixels (Width): | 1920 |
| # Pixels (Height): | 1200 |
| Pixel Size (Square): | 5.86 um |
| Peak Quantum Efficiency: | 90 % |
| Full Frame Rate: | 162 fps |
| Bit Depth: | 12 bit |
| Image Sensor: | 1920 x 1200 pixels |
| Pixel Size: | 5.86 µm square pixels |
| Dynamic Range: | 72 dB |
| Max. Frame Rate At Full Resolution: | 162 fps |
| Readout Noise: | 14 eˉ |
| Integration Time Control: | 0.005 ms – 3.2 s |
| Selectable Region Of Interest: | 1920 x 1200 @ 128 fps (12 bit) or 162 fps (10 bit) |
| Digitization: | 10 or 12 bit (selectable) |
Features
- High-Resolution Image Intensifiers: Offers the world’s highest resolution and sensitivity in the UV, Visible, or Near Infrared spectrum.
- Ultra-Fast Gating: Small gate widths down to less than 3 ns (FWHM) with minimal jitter for precise imaging.
- Single-Chip Digital Synthesizer: Ensures low phase noise for high dynamic range fluorescence lifetime imaging.
- Compact Camera Design: Fits easily to a microscope body or imaging spectroscope for versatile applications.
- LI-Capture Software: Provides complete camera control with an SDK for integration with third-party software.
- Customizable Options: Choose the image intensifier that best matches your application needs, with various models available for different spectral sensitivities and resolutions.
- Time-Resolved Imaging and Spectroscopy: Ideal for applications such as Particle Image Velocimetry (PIV), Laser Induced Fluorescence (LIF), and Time-Gated Luminescence.
- Scientific and Industrial Applications: Perfect for oxygen imaging, viscosity imaging, bio- and chemiluminescence imaging, solar PV and LED characterization, combustion studies, time-gated Raman, plasma physics, and X-ray imaging.
Applications
- Time-Resolved Imaging and Spectroscopy: Enables nanosecond-scale temporal resolution.
- Particle Image Velocimetry (PIV): Facilitates accurate flow visualization and analysis.
- Fluorescence Lifetime Imaging Microscopy (FLIM): Delivers high-dynamic-range FLIM with minimal phase noise.
- Förster Resonance Energy Transfer (FRET): Ideal for molecular interaction studies.
- Bio- and Chemiluminescence Imaging: Captures extremely weak biological and chemical signals.
- Laser-Induced Fluorescence (LIF): Provides precise imaging in combustion and plasma studies.
- Time-Gated Raman and Luminescence: Reduces background for clearer spectral imaging.
- Solar PV and LED Characterization: Supports advanced optoelectronic device testing.
Frequently Asked Questions
Yes, the TRiCAM camera is highly customizable and can be equipped with the image intensifier that best matches your application. Different camera models covering a range in spectral sensitivity, phosphor, spatial resolution, gain, etc. are available.
The TRiCAM camera has an acquisition speed up to 162 fps.
The TRiCAM camera has a gate width down to less than 3 ns (FWHM) with minimal jitter.
The TRiCAM is used for scientific and industrial applications that require low-light level imaging, ultra-short exposures through fast gating, and/or frequency domain imaging using lock-in detection.
The TRiCAM camera includes the LI-Capture software for complete camera control, and the SDK enables integration with third-party software.
