Description
4.2 Megapixel Scientific CMOS Camera
Photometrics Prime is the first intelligent scientific CMOS (sCMOS) camera to incorporate a powerful FPGA-based Embedded Signal Processing™ engine (ESP). ESP enables advanced real-time processing features:
- PrimeEnhance™ quantitatively increases the Peak Signal to Noise Ratio by 3X-5X, increasing the clarity and quality of images.
- PrimeLocate™ dynamically evaluates acquired images and reduces the surplus of data generated during high speed super resolution imaging.
Designed using sCMOS sensor technology, Prime becomes an extremely versatile imaging solution for life science imaging. It is a high resolution camera with great sensitivity, extremely low noise, high frame rates and an impressive dynamic range. The large field of view is ideal for microscopy, maximizing usefulness of the imaging area.

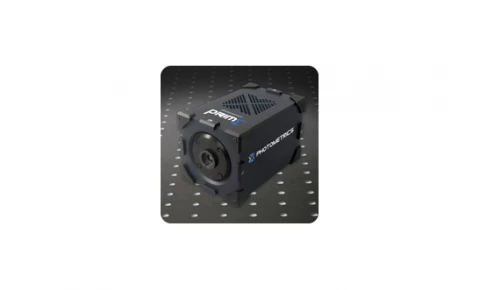

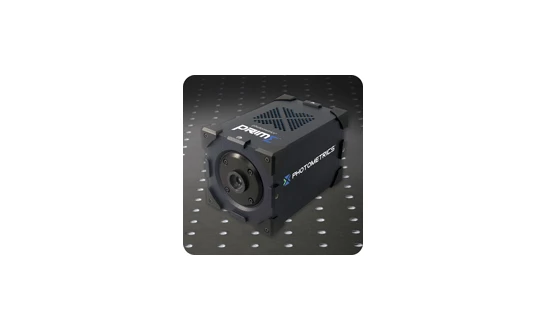

Prime sCMOS Camera
Photometrics
Specifications
| Sensor Type: | CMOS, sCMOS |
|---|---|
| # Pixels (Width): | 2048 |
| # Pixels (Height): | 2048 |
| Pixel Size (Square): | 6.5 um |
| Peak Quantum Efficiency: | 42 % |
| Full Frame Rate: | 100 fps |
| Bit Depth: | 16 bit |
Download Data Sheet
Features
INCLUDED
- PCI-Express Interface Card
- PCI-Express Cable
- USB 3.0 Cable
- Trigger Cable
- Power Supply
- Manuals and QuickStart Guide
- Performance and Gain Calibration Test Data
ADDITIONAL
- Liquid Circulator
- Liquid Cooling Tube
Applications
- Super Resolution Microscopy
- Light Sheet Microscopy
- High Speed Ratiometric Imaging
- TIRF Microscopy
- Confocal Microscopy
Frequently Asked Questions
What applications is the Prime sCMOS camera suitable for?
The Prime sCMOS camera is suitable for a variety of applications including super resolution microscopy, light sheet microscopy, high speed ratiometric imaging, TIRF microscopy, and confocal microscopy.
What is PrimeEnhance?
PrimeEnhance is a real-time quantitative denoising algorithm that improves image clarity by reducing photon-shot (Poisson) noise. It delivers an increase in Peak Signal to Noise Ratio of 3X to 5X.
What is PrimeLocate?
PrimeLocate is a feature that dynamically evaluates and acquires only the relevant data for localization based super resolution applications.
What is the advantage of the Prime sCMOS camera's large field of view?
The large field of view maximizes the number of cells that can be tracked and monitored per frame.
What is the resolution of the Prime sCMOS camera?
The Prime sCMOS camera has a resolution of 4.2 megapixels.
