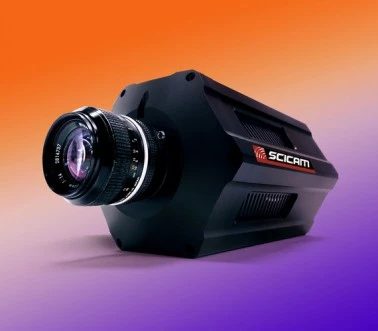

1280SCICAM
OVERVIEW
This Non-ITAR lattice matched InGaAs camera allows for high resolution SWIR and visible imaging 1280x1024 at high frame rates >93fps at full frame size. This small pitch, 12μm array, combined with the high quantum efficiency of the lattice matched InGaAs arrays enables impressive imaging in the SWIR and visible band. The camera has the capability of three setpoints, 20C (no cooling), 0C,-20C, -40C (fan cooling) or -60C (water cooled) using a 3 stage TEC integrated in a vacuum package. This advance digital array (PIRT1280A1-12) on board offers 14 bit digital output with low read noise of <45e- with no image lag is lower than all cooled SWIR scientific cameras. This, combined with the low dark current InGaAs and 3 stage TEC, will enable high sensitivity imaging with very long integration times >2 minutes.
SPECIFICATION
- Sensor Type: InGaAs Array
- # Pixels (Width): 1280
- # Pixels (Height): 1024
- Pixel Size (Square): -- um
- Peak Quantum Efficiency: 82 %
- Full Frame Rate: 93 fps
- Bit Depth: 14 bit
Applications
Thermal Imaging in SWIR
SWIR in Astronomy
Contaminant Detection
Agricultural Inspection
Imaging Through The Atmosphere
Chemical Detection
Moisture Detection
KEY FEATURES
1280x1024 resolution
Response from 0.4-1.7mm
Small 12 μm pitch
QE>75% from 1-1.6 mm
Multiple Temperature Setpoints: 20, 0, -40, and -60°C
Snapshot exposure
High frame rate >93 fps at 1280x1024
14 bit A/D on chip
Low Read Noise <45 e-
Integration times from 50 μs to >2 minutes
High Dynamic Range >3000:1
F- and C-mount lenses available
