Description
Introducing our innovative ultrasol® fibers, specially designed to meet the rigorous demands of UV-VIS applications. These fibers are developed with a high OH content, ensuring exceptional transmission in the critical 190–250 nm range. The use of fused silica glass for the core, combined with a robust fused silica cladding, provides superior performance and durability, making them ideal for challenging environments.
Our solarisation-stable fibers are engineered to withstand progressive absorption, which often leads to complete failure in conventional fibers when exposed to wavelengths below 240 nm. This makes them indispensable for applications requiring reliable performance in extreme conditions. These fibers maintain their integrity and functionality, ensuring consistent results even with prolonged exposure to deuterium lamps.
Available in a variety of core and cladding diameters, our fibers can be customized with single acrylate or polyimide coatings, depending on your specific needs. For added versatility, optional coatings such as Nylon® or Tefzel® can be provided. Additionally, these fibers can be configured as fiber bundles, featuring a single-fiber core starting from 30 μm, offering flexibility and adaptability for diverse application requirements.
Experience the cutting-edge technology of ultrasol® fibers, where durability meets exceptional performance, ensuring your optical needs are met with precision and reliability.
FiberTech Ultrasol Fibers - 84808013F
Specifications |
|
|---|---|
| Core Diameter: | 300 um |
| Wavelength Range: | 190 – 250 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
| Fiber Type: | Solarization Stable |
Features
- High Transmission Range: These fibers offer excellent transmission in the 190–250 nm range, making them ideal for UV-VIS applications.
- Solarization-Stable: Designed to withstand progressive absorption, these fibers maintain performance even in critical ranges below 240 nm.

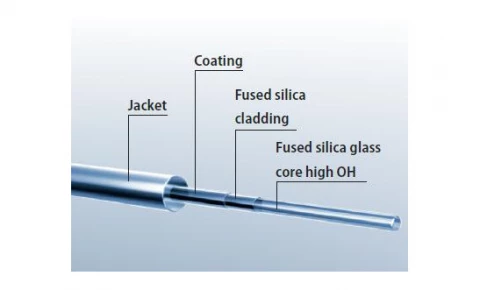

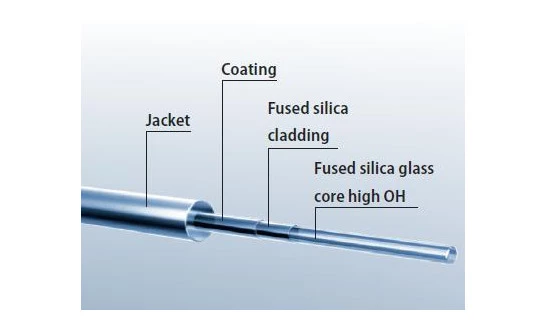

- Core and Cladding: Made from fused silica glass with a high OH content, ensuring durability and efficiency.
- Versatile Coating Options: Available with single acrylate or polyimide coatings, providing flexibility for different applications.
- Customizable Fiber Sizes: Core diameters range from 100 to 600 μm, with corresponding cladding and coating sizes for tailored solutions.
- Order Specificity: Each fiber size and coating type has a unique order number for easy procurement.
- Optional Materials: Nylon® or Tefzel® coatings are available upon request for additional customization.
- Available as Bundles: Solarization-stable fibers can be configured as fiber bundles with a single-fiber core starting from 30 μm.

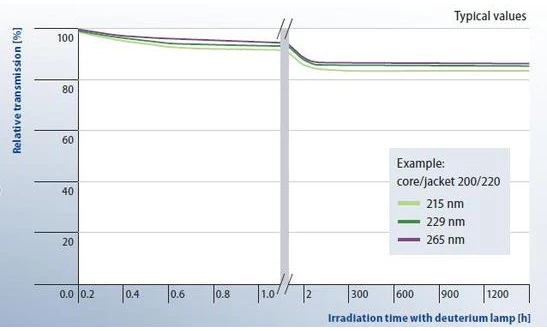

- Ideal for Deuterium Light Sources: Performance validated using a deuterium lamp, ensuring reliability in UV applications.
- Advanced Fiber Technology: Ultrasol® fibers are specially developed for high UV stability and performance.
Applications
- UV-VIS Spectroscopy: Provides stable transmission for accurate analytical measurements
- Analytical Instrumentation: Enhances reliability in UV-based laboratory systems
- UV Illumination: Ideal for durable UV light delivery in industrial and research setups
- Industrial UV Processing: Suitable for lithography, curing, and UV manufacturing
- systems
- Scientific Research: Supports long-term operation in demanding UV experimental environments
Frequently Asked Questions
These fibers are solarisation-stable, meaning they do not experience progressive absorption and complete failure when used in the critical range of <240 nm, unlike UV-VIS fibers.
The fibers are coated with either single acrylate or polyimide, with coating diameters ranging from 160-740 μm.
Yes, Nylon® or Tefzel® coatings are optionally available, and further specifications are possible.
The fiber bundles are available with a single-fiber core from 30 μm.
These fibers are suitable for applications in the 190-250 nm range.
