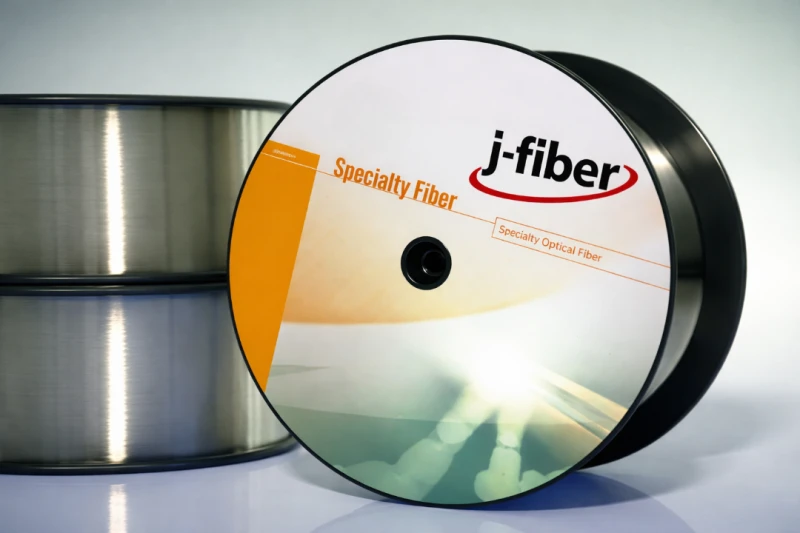

Thumbnail of 62.5/125 Radiation Hard Multimode Fiber for Military and Aerospace photo 1

Description

The 62.5/125 Radiation Hard Multimode Fiber is a specialized product from j-fiber’s series of radiation hard multimode fibers, meticulously engineered to endure the challenges posed by radiation-prone and harsh environments. This fiber is particularly suited for military and aerospace applications, where reliability and performance are critical. Its design ensures that it maintains low attenuation changes even under significant radiation exposure, making it a dependable choice for demanding conditions.

One of the standout aspects of this fiber is its compatibility with various cable constructions, including tight buffering and loose tube configurations. This is achieved through j-fiber’s standard double-layer acrylate coating, which not only enhances durability but also simplifies the cabling and installation process. Additionally, the fiber can withstand higher temperature ranges, thanks to the option of high-temperature acrylate or Polyimide coatings, further broadening its applicability in extreme environments.

Manufactured to meet rigorous standards such as IEC 60793-2-10, TIA/EIA 492, and ITU G651.1, the 62.5/125 Radiation Hard Multimode Fiber exemplifies j-fiber’s commitment to quality and performance. Its optical characteristics, including a numerical aperture of 0.275 ± 0.015 and effective group indices of refraction at 850nm and 1300nm, ensure optimal performance across a range of wavelengths. This fiber is not only a testament to advanced engineering but also a reliable solution for industries where precision and resilience are paramount.

62.5/125 Radiation Hard Multimode Fiber for Military and Aerospace

Visit the j-fiber GmbH Store

Specifications

Core Diameter: 62.5 um
Wavelength Range: 850 – 1383 nm
Cable Length: 1100 m
Fiber Core Material: Not Specified
Effective Group Index Of Refraction At 1300nm: 1.493
Attenuation Coefficient At 850nm: ≤ 2.8 dB/km
Standard Lengths: 1.1 – 8.8 km
Color: Natural
Coating/Clad Concentricity Error: ≤ 12 µm
Coating Diameter: 242 ± 7 µm
Cladding Non-Circularity: ≤ 1.0 %
Cladding Diameter: 125 ± 1 µm
Core/Clad Concentricity Error: ≤ 1.5 µm
Core Non-Circularity: ≤ 5.0 %
Core Diameter: 62.5 ± 2.5 µm
Attenuation Coefficient At 1300nm: ≤ 0.8 dB/km
Effective Group Index Of Refraction At 850nm: 1.497
Numerical Aperture: 0.275 ± 0.015
Bandwidth At 1300nm: ≥ 500…≥ 800 MHz.km
Bandwidth At 850nm: ≥ 160…≥ 250 MHz.km
Macrobend: ≤ 0.5 dB
Radiation Induced Attenuation (RIA) At 1350nm: ≤ 200 dB
Radiation Induced Attenuation (RIA) At 1300nm: ≤ 50 dB
Att. Discontinuities (OTDR 1300nm): < 0.05 dB
Attenuation Coefficient At 1383nm: ≤ 0.7 dB/km

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Radiation Resistance: Specifically designed to withstand radiation exposure, making it ideal for military and aerospace applications.
  • Low Attenuation Change: Maintains low attenuation levels even under radiation exposure, ensuring reliable performance.
  • Standard Features: Guarantees all j-fiber Multimode fiber standard features, including ease of cabling and installation, and high-performance results.
  • Compatibility: Excellent compatibility with all cable constructions, such as tight buffering and loose tube, thanks to j-fiber’s standard double-layer acrylate coating.
  • High-Temperature Coatings: Offers higher temperature ranges with high-temperature acrylate or Polyimide coating options.
  • Standardization Compliance: Meets international standards including IEC 60793-2-10, TIA/EIA 492, and ITU G651.1.

Applications

  • Military Applications: Designed to withstand radiation in military environments, ensuring reliable communication and data transmission.
  • Aerospace Applications: Suitable for use in aerospace settings where radiation resistance is crucial for maintaining system integrity.
  • Harsh Environment Installations: Ideal for installations in environments exposed to high levels of radiation, such as nuclear facilities or space missions.
  • High-Temperature Applications: With high-temperature acrylate or Polyimide coating, these fibers can operate in higher temperature ranges.
  • Telecommunications: Provides stable performance in telecommunications infrastructure exposed to radiation.
  • Data Centers: Ensures data integrity and performance in data centers located in radiation-prone areas.
  • Research Facilities: Suitable for use in research facilities where radiation exposure is a factor, ensuring accurate data collection and transmission.

Frequently Asked Questions

What is the 62.5/125 Radiation Hard Multimode Fiber designed for?
The 62.5/125 Radiation Hard Multimode Fiber is designed to withstand the hazards of radiation-threatened and harsh environments, particularly in military and aerospace applications.
What are the key features of the 62.5/125 Radiation Hard Multimode Fiber?
Key features include low attenuation change under radiation exposure, compatibility with all cable constructions, and higher temperature ranges with high-temperature acrylate or Polyimide coating.
What are the standardization references for this fiber?
The fiber complies with IEC 60793-2-10, TIA/EIA 492, and ITU G651.1 standards.
What are the optical characteristics of the fiber at different wavelengths?
The attenuation coefficient is ≤ 2.8 dB/km at 850nm, ≤ 0.8 dB/km at 1300nm, and ≤ 0.7 dB/km at 1383nm. The bandwidth is ≥ 160…≥ 250 MHz.km at 850nm and ≥ 500…≥ 800 MHz.km at 1300nm.
What is the numerical aperture of the fiber?
The numerical aperture of the fiber is 0.275 ± 0.015.
What are the geometrical characteristics of the fiber?
The core diameter is 62.5 ± 2.5 µm, cladding diameter is 125 ± 1 µm, and coating diameter is 242 ± 7 µm. Core non-circularity is ≤ 5.0%, and cladding non-circularity is ≤ 1.0%.
