Description
The NeoPhotonics’ Eigenlight Series 500 (S500) is an innovative inline optical power monitor designed for seamless integration into live systems. This compact and cost-effective instrument is engineered to measure the power of a signal being transmitted through an optical fiber without compromising system performance. Unlike conventional power meters, the S500 allows for real-time, continuous power measurement, making it an essential tool for maintaining optimal system functionality.
One of the standout features of the Series 500 is its digital readout, which provides instantaneous power measurements. Users can effortlessly toggle the display between different wavelengths and switch between absolute and relative power readings. This flexibility ensures precise monitoring and control of optical signals, enhancing the overall efficiency of the system. The device also includes a USB port, allowing for easy interfacing with power monitoring software, available through an optional license.
The Series 500 is built with patented optical tap technology, ensuring fiber continuity while measuring optical power. This advanced technology delivers unparalleled performance with ultra-low insertion loss, minimal polarization-dependent loss, and high directivity. The device is designed with practical features such as a built-in stand, magnets for mounting, and easy battery access, making it suitable for both field and laboratory applications.
Constructed with a durable Lexan body and Santoprene bumpers, the Series 500 is robust yet lightweight, weighing less than 100 grams. It operates efficiently within a temperature range of 0 to +40 degrees Celsius and can be stored in conditions ranging from -10 to +60 degrees Celsius. The power monitor is powered by a lithium coin cell or micro-USB, with a typical battery life of three years in slow mode, ensuring long-lasting and reliable performance.
NeoPhotonics Eigenlight Series 500 Inline Optical Power Monitor
Specifications |
|
|---|---|
| Wavelength Range: | 1310 – 1550 nm |
| Tap Ratio (average): | 5 % |
| Tap Efficiency (typical): | 1 |
| Insertion Loss (max): | 0.5 dB |
| Return Loss (min): | 70 dB |
| Power Handling: | 400 mW |
| Fiber Type: | Single-Mode Fiber |
| Insertion Loss: | < 0.5 dB |
| Power Range: | -50 to +16 dBm |
| Power Range: | -40 to +25 dBm |
| Polarization Sensitivity: | < 0.2 dB |
| Storage Temperature: | -10 to +60 C |
| Size: | 94.5 x 56.5 x 27 mm |
| Weight: | < 100 gr |
Features
- Compact and Cost-Effective: The NeoPhotonics’ Eigenlight Series 500 (S500) is designed as a low-cost, compact instrument for measuring optical signal power.
- Real-Time Monitoring: Unlike conventional power meters, this power monitor can be installed in live systems for continuous, real-time power measurement without compromising system performance.
- Digital Readout: Features a digital display for instantaneous power readings, allowing toggling between wavelengths and absolute or relative power readings.
- USB Connectivity: Includes a USB port for interfacing with power monitoring software (optional license required).
- Optical Interface: Equipped with FC/APC connectors for reliable optical connections.

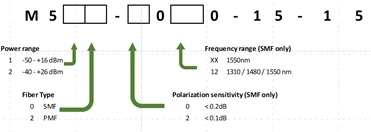

- Wide Power Range: Supports a power range of -50 to +16 dBm (M510) and -40 to +25 dBm (M520).
- Low Insertion Loss: Offers ultra-low insertion loss of less than 0.5 dB (M510) and less than 0.2 dB (M520).
- High Accuracy and Directivity: Provides absolute accuracy of < 0.2 dB and directivity of > 20 dB.
- Long Battery Life: Powered by a 1 Lithium Coin Cell (CR2477N) with a typical battery life of 3 years in slow mode.
Applications
- Optical Network Monitoring: Continuous power monitoring in live systems.
- DWDM & Amplifier Systems: Ensures accurate power balancing and performance tracking.
- Field and Lab Testing: Compact tool for technicians during installation and maintenance.
- R&D and Manufacturing: Ideal for use in optical component and system development.
Frequently Asked Questions
The In-Line Power Monitor is used for measuring the power of a signal in an optical fiber.
Yes, the In-Line Power Monitor can be installed in live systems for real-time, continuous power measurement, without compromising system performance.
The In-Line Power Monitor features a digital readout of the instantaneous power of a transmitted signal. The display can be toggled between wavelengths, as well as absolute and relative power readings.
The In-Line Power Monitor includes a USB port for interfacing with power monitoring software (optional license).
Yes, the device includes a built-in stand, magnets for mounting on ferrous surfaces, and easy battery access, making it practical for use in field and lab applications.
