Description
The NeoPhotonics EigenLight Series SR100 Fiber Optic Tap Power Monitors are a cutting-edge solution for in-line power measurement in optical fibers. Encased in a miniature, hermetic package, these monitors integrate a stable optical tap with a PIN photodiode, ensuring precise power measurement capabilities. This innovative design eliminates the need for lenses or partial reflectors, thereby maintaining fiber continuity and delivering exceptional performance and reliability.
Designed to meet the demands of the most challenging power measurement applications, the Series SR100 offers unparalleled performance. The patented process used in these monitors guarantees stability and accuracy, making them ideal for environments where precision is paramount. With a focus on maintaining fiber integrity, the SR100 series stands out as a reliable choice for professionals seeking high-quality optical power monitoring solutions.
Each unit in the Series SR100 is engineered to operate efficiently across a range of wavelengths and conditions. The monitors are available in various configurations, catering to different fiber types and connector needs. Whether you require a solution for standard single-mode fibers or polarization-maintaining fibers, the SR100 series provides the flexibility and adaptability necessary to meet diverse application requirements. With a commitment to excellence, NeoPhotonics ensures that each product delivers superior optical performance and long-term reliability.

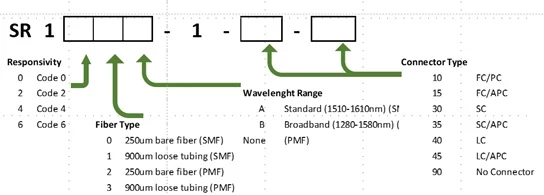

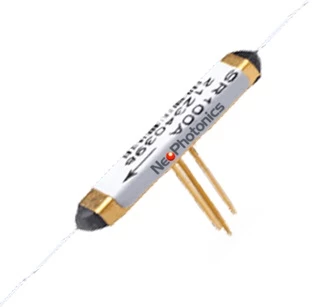

NeoPhotonics SR100 Series Inline Optical Tap Monitor
Specifications
| Wavelength Range: | 1280 – 1610 nm |
|---|---|
| Tap Ratio (average): | 1 % |
| Tap Efficiency (typical): | 1 |
| Insertion Loss (max): | 0.05 dB |
| Return Loss (min): | 70 dB |
| Power Handling: | 400 mW |
| Responsivity Version A / PMF: | 35 - 60 mA/W |
| Responsivity Version B, SMF Only: | 25 - 50 mA/W |
| Polarization Stability SMF: | < 0.2 dB (A) |
| Extinction Ratio PMF: | > 21 dB |
| Optical Return Loss: | > 70 dB |
| 3dB Bandwidth @ -5V: | > 200 MHz |
| Max Reverse Voltage: | 10 V |
| Operating Temperature: | -5 to 75 C |
| Storage Temperature: | -40 to 85 C |
Download Data Sheet
Features
- Patented Fiber Continuity Design: No lenses or reflectors for superior reliability and performance.
- Ultra-Low Insertion Loss: As low as 0.05 dB for minimal signal impact.
- High Return Loss: >70 dB to ensure excellent signal integrity.
- Minimal PDL: Polarization dependent loss <0.01 dB for accurate measurements.
- Broad Wavelength Range: Supports 1280–1610 nm depending on fiber type.
- Compact Hermetic Package: Ensures durability in challenging environments.
Applications
- Telecommunications: Ideal for monitoring signal power levels in fiber optic communication networks.
- Data Centers: Used for power monitoring in high-density data center environments to ensure optimal performance.
- Optical Network Testing: Suitable for in-line power measurements during network testing and maintenance.
- Research and Development: Provides precise power measurements for laboratory and R&D applications.
- Medical Equipment: Can be used in optical systems within medical devices for power monitoring.
- Industrial Applications: Useful in industrial fiber optic systems where power monitoring is critical.
- Broadcasting: Ensures signal integrity in fiber optic broadcasting systems by monitoring power levels.
