Description
Fiber stretchers, also called phase shifters, offer the attractive feature to tune and modulate the path length of the light within the fiber core and so the resulting optical delay does. They are based on voltage-driven Piezo ceramics and need to be controlled with proper electronics drivers. Any type of fiber may be assembled, please ask.
Their compact packaging makes them suitable for various system applications. Typical applications include variable optical delay, fiber interferometry, ultra-fast dynamics and lasers.

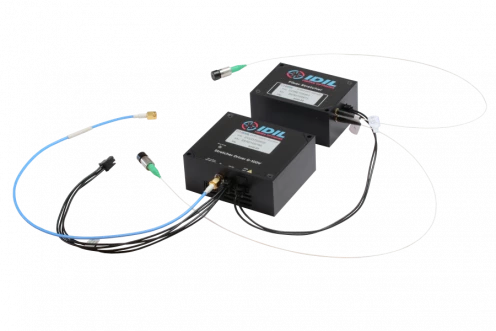

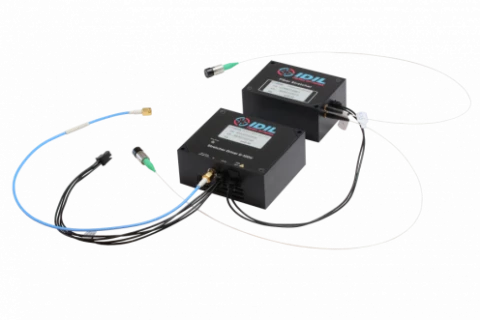

High-Delay Combo: Fiber Stretcher + Piezo Driver
Specifications
| Operational Wavelengths: | 1310 – 1550 nm |
|---|---|
| Fiber Stretch: | 20 um/Volt |
| Optical Path Displacement: | 6 um/Volt |
| Time Delay: | 0.5 ps/Volt |
| Fibers: | SM, PM |
| Wavelength: | 1310, 1550 nm |
| Fiber Elongation: | From 0 to 100 µm |
| Fiber Stretch: | 20 µm/V |
| High Tunability Resolution: | < 1 fs |
| Small Signal Bandwidth: | 150 kHz |
| Large Signal Bandwidth: | 40 kHz |
| Optical Loss: | 0.5 dB |
| Internal Fiber Length: | 6.5 m |
| Customizable Fiber Type, Termination, Stretch Range...: | Specify |
| Fiber Stretcher Dimensions: | 85x62x39 mm |
| Piezo Driver Dimensions: | 84x80x39 mm |
| Time Delay Reference @1550nm: | Up to 0.5ps (100µm) |
Download Data Sheet
Features
- Modulation of the optical path length (i.e. the optical phase)
- Accurate control of the delay
- Low insertion loss between 0.05 and 0.3dB
- High resolution < 1fs
- High speed
- Compact packaging
- All fibers: SM, MM, PM, LMA
- Large choice of optical termination
- Analog control (+digital in option)
Applications
- Variable optical delay
- Interferometric measurements
- Ultrafast dynamics
- Fast feedback loop
- Lasers & ultra-intense lasers
- Metrology
- Coherent Beam Combining
- Chirped Pulsed Amplification (CPA)
Frequently Asked Questions
What is the purpose of a fiber stretcher?
A fiber stretcher is used to tune and modulate the path length of light within a fiber core, allowing for variable optical delay and other applications.
What types of fibers can be used with the high-delay combo?
The high-delay combo is compatible with all types of fibers, including SM (single-mode), MM (multi-mode), PM (polarization-maintaining), and LMA (large mode area).
What are the dimensions of the fiber stretcher and driver?
The fiber stretcher has dimensions of 85x62x39 mm³, while the driver has dimensions of 84x80x39 mm³.
What is the resolution of the high-delay combo?
The high-delay combo offers a high resolution of less than 1 femtosecond (fs), allowing for precise control of the delay.
What are the typical applications of the high-delay combo?
The high-delay combo is commonly used for variable optical delay, interferometric measurements, ultrafast dynamics, lasers, and ultra-intense lasers.
