Sampling and Measurement Accessories
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Netherlands
-
Sold by:
-
On FindLight:
since 2017
Description
Admesy presents a comprehensive suite of sampling and measurement accessories designed to enhance the precision and versatility of our measurement devices. Our collection includes a variety of essential tools such as collimating lenses, cosine correctors, optical fibres, reflective probes, and integrating spheres. Each accessory is carefully crafted to ensure compatibility and optimal performance, whether you're conducting experiments in a laboratory setting or integrating these tools into industrial production lines.
Our sampling accessories are engineered to meet the diverse needs of our users, offering solutions that cater to both standard and specialized measurement tasks. With options ranging from collimating lenses for spot measurements to integrating spheres for comprehensive radiant power assessments, Admesy ensures that every measurement is precise and reliable. These accessories are designed to seamlessly integrate with our Cronus spectro-colorimeter, enhancing its capabilities and providing users with the flexibility to tackle a wide range of applications.
Admesy’s lens accessories are developed for remote sensing applications, providing users with the ability to connect our advanced colorimeters, spectrometers, and light meters to M8 optical fibres. This innovation allows for greater flexibility in both research and development environments as well as in production line settings. Our range includes various lens systems, each tailored to specific measurement needs, ensuring that users can achieve the highest level of accuracy in their analyses.

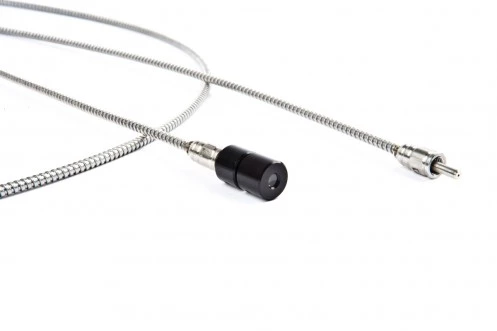

Our optical fibres are integral to the functionality of Admesy's measurement systems, offering a reliable medium for transmitting light between the measurement device and the sample. These fibres are engineered to maintain the integrity of the light signal, ensuring that measurements are both accurate and consistent. By incorporating our optical fibres into your setup, you can enhance the performance of your measurement devices, achieving superior results across a range of applications.
Sampling and Measurement Accessories
Specifications |
|
|---|---|
| AC-CC-01: | 1 cm² UV-NIR cosine corrector system |
| AC-COL-5: | 5 mm collimating lens system |
| AC-COL-10: | 10 mm collimating lens system |
| AC-COL-20: | 20 mm collimating lens system |
| AC-IDMS-1-1: | IDMS lens system |
| AC-VMS-1-05: | VMS lens system |
| AC-L10-Tube: | 100mm measurement tube for 10mm lens system |
Features
- Wide Accessory Range: Includes lenses, fibres, integrating spheres, reflective probes, and cuvette holders for diverse measurement needs.
- Stable M8 Connections: Ensures fixed positioning and enhanced repeatability with M8 fibre connectors.
- Flexible Optical Fibres: Available in lengths from 250 mm to 3000 mm for adaptable setups.
- Integrating Spheres: Options in 75 mm, 150 mm, and 250 mm with optional auxiliary lamps for LED testing.
- Reflective Probes: 0° and 45° configurations with 200μm or 400μm fibre for remote reflective measurements.
- Calibration Accessories: Includes gloss and reflection standards for precise calibration.
- Robust Cables & Adapters: Compatible with various interfaces for seamless integration.
- Dust Caps: Protects lens systems from contamination during storage.
Applications
- Optical Characterisation: Enables accurate spectral, luminance, and colour measurements in R&D.
- Production Quality Control: Ensures reliable and repeatable measurements in manufacturing lines.
- LED and SSL Testing: Supports radiant power and irradiance measurements for LED evaluation.
- Display Spot Measurement: Optimised for display brightness and colour spot measurements.
- Reflective Colour Measurement: Ideal for appearance and gloss analysis in material testing.
- Laboratory Calibration: Provides essential standards for maintaining calibration accuracy.
- Remote Sensing Applications: Facilitates flexible measurement setups for remote sensing tasks.
Frequently Asked Questions
Admesy offers a broad range of sampling and measurement accessories, including collimating and other lenses, cosine correctors, fibers, reflective probes and holders, integrating spheres, and cuvette holders.
Admesy's lens accessories are used for remote sensing in combination with their colorimeters, spectrometers, and light meters. They allow for flexibility when integrating measurement devices into production lines or for R&D purposes.
Admesy's optical fibers are used to connect devices and accessories such as separate lenses and integrating spheres. The fixed position of the fibers allows for more stable measurement results and enhances repeatability.

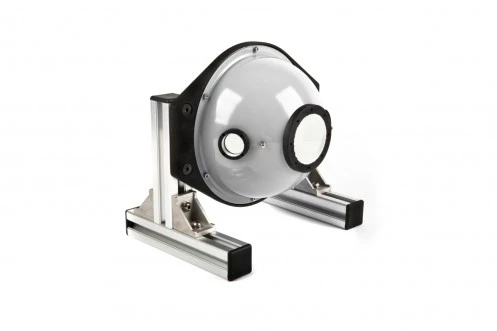

Integrating spheres are used for radiant power measurements of light sources. Admesy offers various integrating spheres that can be connected to their colorimeters, spectrometers, or light meters with their M8 optical fibers.
Yes, Admesy offers calibration accessories, including absolute calibration of their spectrometer in combination with their integrating sphere.
