Description
MiniSpectrometer BIM-6511 Series Overview

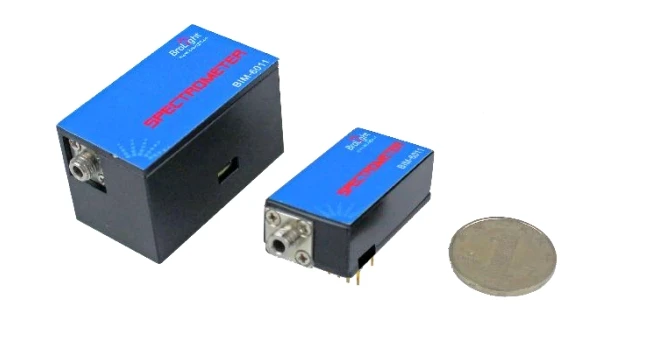

The BIM-6511 series MiniSpectrometer is a groundbreaking development in the field of compact spectrometry. Utilizing a novel flat field concave grating optical design, this spectrometer achieves an impressively small form factor, comparable to the size of a coin. This compactness makes it exceptionally convenient for industrial integration and portable applications. Whether you are in the environmental protection testing industry or the lighting industry, the BIM-6511 series stands out as an ideal choice for portable water quality testing and handheld light color measurement.
Designed with versatility in mind, the standard BIM-6511 model is ready for immediate use and integration. For those seeking a more customized approach, the BIM-6511-NC model is available without the main control circuit board, allowing customers to independently develop their own control circuits based on the detector. This adaptability ensures that the BIM-6511 series can meet a wide range of needs, whether for direct application or for tailored integration into specialized equipment.
Incorporating advanced technology into a small package, the BIM-6511 series MiniSpectrometer is not only easy to carry but also easy to integrate into existing systems. Its compact design does not compromise on functionality, making it a powerful tool for industry professionals who require reliable and precise spectrometry in a portable format. This series exemplifies the future of spectrometry, where high performance and portability are seamlessly combined.
Brolight BIM-6511 Series Mini Spectromter
Specifications |
|
|---|---|
| Spectrometer Type: | Not Specified |
| Wavelength Range: | 200 – 1700 nm |
| Wavelength Range: | 200nm-750nm |
| Optical Resolution: | ~5.6nm |
| Slit: | 50um |
| Fiber Connector: | SMA905 |
| Detector: | Hamamatsu S8378-256, CMOS |
| Pixel: | 256 pixel |
| Signal To Noise Ratio: | 400:1 |
| A/D Resolution: | 16bit |
| Integrating Time: | 5ms-60s |
| Dynamic Range: | 1000:1 |
| Trigger Mode: | Mode, Software, Hardware, Synchronization Trigger |
| Power Consumption: | 250mA, 5VDC |
| Operating Temperature: | 5℃-35℃ (25℃ recommended) |
| Communication Interface: | USB2.0 (12Mbps), RS232 (115200bps) |
| Operation System: | WinXP, Win7, Win8, Win10 |
| Power Supply: | USB |
| Dimension: | 50mm×28mm×30mm |
| Weight: | 100g |
Features
- Compact Size: The MiniSpectrometer BIM-6511 Series is as small as a coin, making it easy to carry and integrate into various applications.
- USB Power Supply and Communication: Supports USB power supply and communication, ensuring ease of use and connectivity.
- Versatile Triggering Methods: Offers multiple triggering methods and powerful software functions for enhanced performance.
- SDK and Development Support: Provides an SDK and supports secondary development, allowing for customization and integration.
- Two Versions Available: Available in standard version and a version without the main control circuit for custom development.
- Wide Application Range: Ideal for portable water quality testing, handheld lighting measurement, material testing, component detection, and spectral measurement.
- High Optical Resolution: Features an optical resolution of approximately 5.6nm and a wavelength range of 200nm-750nm.
- Advanced Detector: Equipped with a Hamamatsu S8378-256 CMOS detector for reliable performance.
- Robust Dynamic Range: Offers a dynamic range of 1000:1 and a signal-to-noise ratio of 400:1.
- Flexible Integration Time: Integration time ranges from 5ms to 60s, allowing for flexible measurement settings.
- Low Power Consumption: Consumes only 250mA at 5VDC, making it energy efficient.
- Wide Operating Temperature: Operates efficiently between 5℃ and 35℃, with a recommended temperature of 25℃.
- Comprehensive Communication Interface: Features USB 2.0 and RS232 interfaces for broad compatibility.
- Compatible Operating Systems: Supports Windows XP, 7, 8, and 10 for versatile usage.
- Lightweight and Portable: Weighs only 100g, ensuring portability without compromising functionality.
Applications
- Probe Water Quality Measuring Instrument Integration: Ideal for integrating into portable water quality testing equipment, enhancing environmental protection testing capabilities.
- Handheld Lighting Instrument Integration: Suitable for handheld devices used in light color measurements within the lighting industry.
- Handheld Material Testing Instrument Integration: Can be integrated into portable devices for testing various materials, making it versatile for field applications.
- Handheld Component Detection Instrument Integration: Perfect for use in portable devices designed to detect and analyze components in various settings.
- Portable Spectral Measurement: Offers the convenience of portable spectral analysis, making it useful for a wide range of applications where mobility is key.
Frequently Asked Questions
The MiniSpectrometer BIM-6511 Series is used for portable water quality testing in environmental protection testing and handheld light color measuring in the lighting industry.
The BIM-6511 model has dimensions of 50mm x 28mm x 30mm and weighs 100g.
The wavelength range of the BIM-6511 series is 200nm to 750nm.
Yes, the BIM-6511 series supports USB power supply and communication.
The optical resolution of the MiniSpectrometer BIM-6511 is approximately 5.6nm.
Yes, there is a BIM-6511-NC model available without the main control circuit board, allowing customers to develop their own control circuit.
The operating temperature for the BIM-6511 is between 5℃ and 35℃, with 25℃ recommended.
