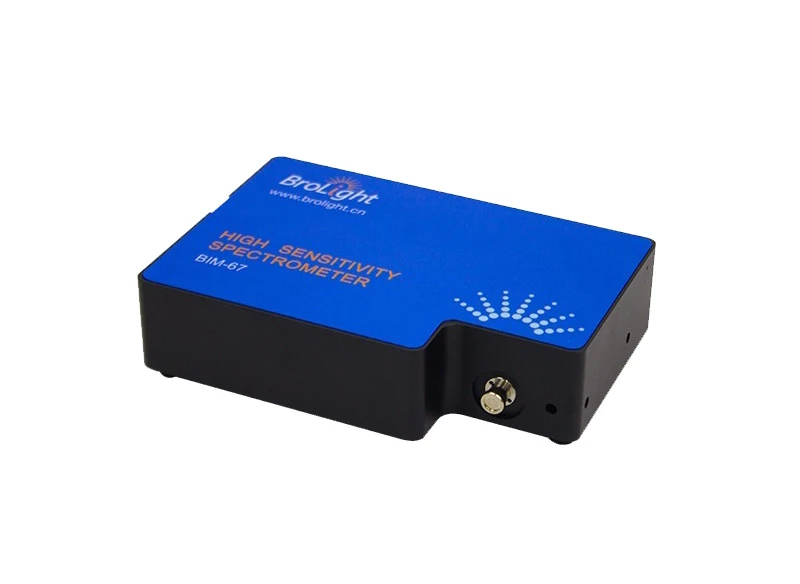

Brolight BIM-6704 Series UV High-Sensitivity Spectrometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Hangzhou Brolight Technology -
On FindLight:
since 2025
Description
The BIM-6805 Series NIR Fiber Spectrometer is engineered with a compact optical path and structural design, incorporating a built-in Hamamatsu non-cooled 128-pixel InGaAs detector. This spectrometer is distinguished by its extremely low power consumption and offers flexible and diverse configurations. With a spectral detection range of 950 nm to 1700 nm, it is optimally designed for applications in food sorting, biopharmaceuticals, life sciences, and system integration.
One of the standout features of the BIM-6805 is its replaceable slit design. This innovative design allows a single spectrometer to be configured with various slit widths, accommodating different resolutions and sensitivities required for precise spectral measurements. This flexibility significantly broadens the range of application requirements, making the BIM-6805 a versatile choice for various industries.
The spectrometer’s compact optical path and structural design not only facilitate seamless system integration but also enhance its adaptability in complex environments. Additionally, the BIM-6805 supports secondary development and OEM integration, offering powerful software functions that include automatic calculation of peak wavelength and bandwidth. This makes it a reliable tool for professionals seeking precision and efficiency in spectral analysis.
Brolight BIM-6704 Series UV High-Sensitivity Spectrometer
Specifications |
|
|---|---|
| Spectrometer Type: | Not Specified |
| Wavelength Range: | 200 – 1700 nm |
| Detector: | InGaAs 128-pixel non-cooled |
| Detector Pixel Size: | 50 μm × 250 μm |
| Wavelength Range: | 950 nm - 1700 nm |
| Resolution: | 10 nm |
| A/D: | 16 bit |
| Integrating Time: | 0.1 ms - 65 s |
| Trigger Model: | Normal Mode, Software, Hardware, Synchronization |
| Fiber Connector: | SMA905 |
| Operation Temperature: | 5℃ - 35℃ (25℃ recommended) |
| Communication: | USB2.0, RS232 |
| Operation System: | WinXP, Win7, Win8, Win10 |
| Power Supply: | USB or 5 VDC |
| Dimension: | 165 mm × 110 mm × 38 mm |
Features
- Compact Design: The BIM-6805 series NIR spectrometer features a compact optical path and structural design, making it ideal for system integration.
- Non-Cooled InGaAs Detector: Utilizes a Hamamatsu non-cooled 128-pixel InGaAs detector for extremely low power consumption.
- Flexible Configurations: Offers flexible and diverse configurations with two versions of the detector available: 128 pixels and 256 pixels.
- Replaceable Slit Design: Allows for flexible switching of different resolutions and sensitivities to meet various spectral measurement needs.
- Wide Spectral Range: Spectral detection range of 950nm-1700nm suitable for food sorting, biopharmaceuticals, life sciences, and system integration.
- Secondary Development Support: Supports secondary development and OEM integration for customized applications.
- Powerful Software Functions: Includes automatic calculation of peak wavelength and bandwidth.
- Versatile Applications: Ideal for detecting freshness and sugar content in fruits and vegetables, fat and protein content in meat, quality analysis of grains and seeds, component analysis of oil products, and more.
- Stable Measurement: Provides a stable intensity across the wide spectral measurement range.
Applications
- Detection of freshness and sugar content of fruits and vegetables
- Detection of fat and protein content of meat
- Quality analysis of grains and seeds
- Component analysis of oil products
- Applications in life sciences
- Pharmaceutical component analysis and process monitoring
- Component analysis of plastic product production process
- Material screening and quality control
Frequently Asked Questions
The spectral detection range of the BIM-6805 series NIR Fiber Spectrometer is 950nm to 1700nm.
The BIM-6805 spectrometer uses a non-cooled Hamamatsu 128-pixel InGaAs detector.
Yes, the BIM-6805 spectrometer features a replaceable slit design, allowing it to be configured with various widths of slits to meet different resolutions and sensitivities.
The BIM-6805 spectrometer is suitable for applications such as detection of freshness and sugar content of fruits and vegetables, detection of fat and protein content of meat, quality analysis of grains and seeds, component analysis of oil products, and pharmaceutical component analysis and process monitoring.
The BIM-6805 spectrometer can be powered via USB or a 5V DC power supply.
The BIM-6805 spectrometer is compatible with Windows XP, Windows 7, Windows 8, and Windows 10 operating systems.
Yes, the BIM-6805 spectrometer supports secondary development and OEM integration.
