Description
This device uses laser UV and other specifial spectrums to identify the evidence extraded in crime scene, according to the features of that biological stains,DNA,fingerprint,blood stain and fibers has the natural fluorscence reflection. Especially for the micro DNA evidence that is invisible by eyes and hidded in the complexible and varied vectors, Different objects will reflect and display the strong fluorescence effect under the laser and UV special spectrums. So the device can extrade the biological evidence rapidly and effectively, and won't destruct the DNA organism.
With reagent atomizing nozzle：
Portable electric atomizing reagent bayonet design, can be atomized for different objects in the crime scene or laboratory, and is not limited to the volume of the object, greatly improving the utilization rate of equipment.

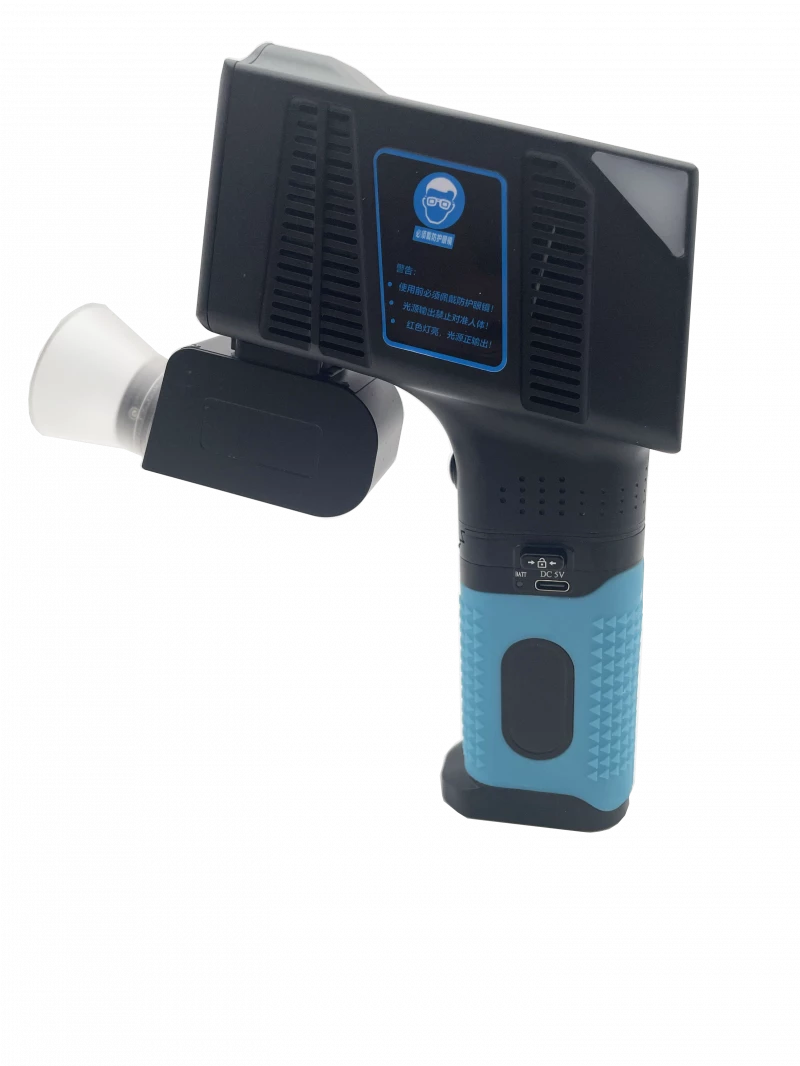

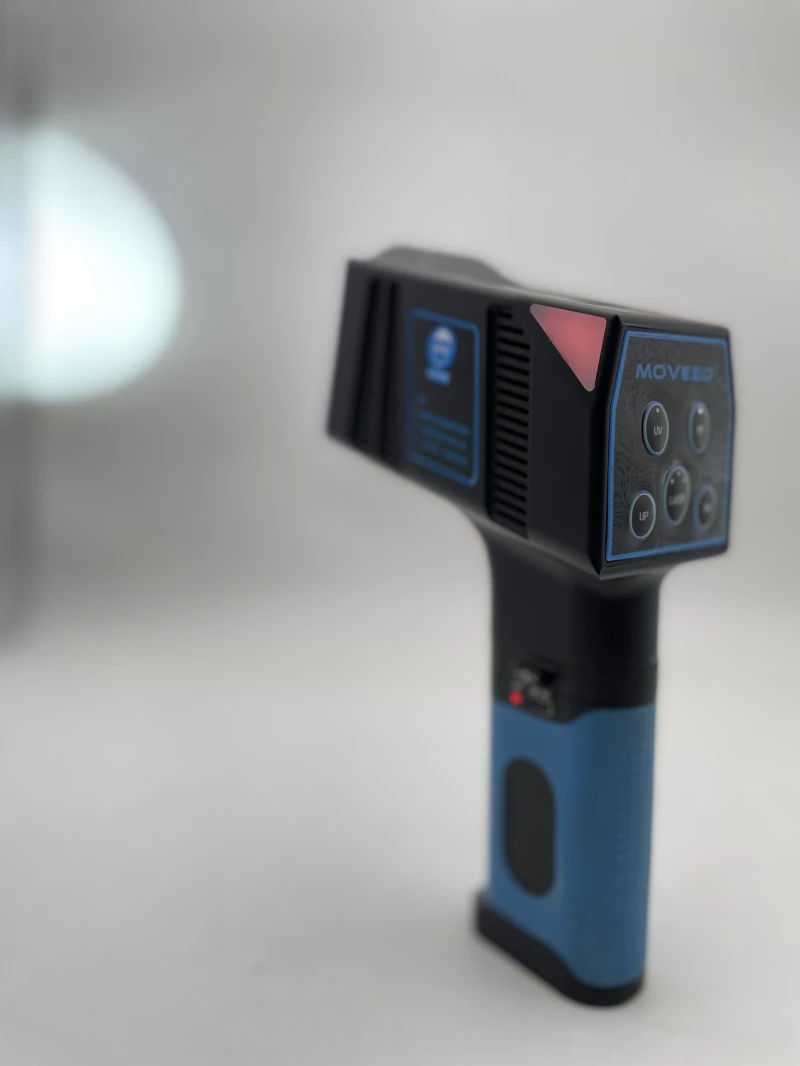

Non-destructive Biological eviden display device OR-GJG900
Download Data Sheet
Features
1. Handheld, we can change the wavelengths, adjust laser power and radiation angle by one hand operation
2.With hand press switch, control output light source, red light warning light output. Avoid exposure to human eyes or skin.
3.Replacable Li Battery handheld
4.Equipped with tripod connector, it can fixed in the tripod to take photoes()
5.Searching all kinds of unreliable evidences(like fingerprints, DNA, semen, fibers, etc) rapidly..
6.Excitation reagents (targeting reagents) treat the fluorescence of the physical evidence or the physical evidence itself.
7.UV light source has high purity, high output energy and large spot irradiation area.
8.Laser has the advantages of good monochromaticity, high brightness and high parallelism. Using laser as excitation light source can effectively avoid the interference of stray light (that is, background light) and enhance the fluorescence contrast of the image.
9. Adjustable laser output power
10. Adopting air cooling system to heat radiation
11. When the power capacity indicator turns red from green, it means the rest of power capacity is 10-20%, and need to be charged in time.
Applications
Main function:
1.Strong discovery function for bioactive ingredients (sperm stain, saliva stain, sweat stain, urine traces, hair, shed cells, bone and tooth fragments and hidden evidence, etc.)
2. To show the old and disappeared handwriting in paper
3. To sercch and collect the evidence
4. To display the old or fresh fingerprints which can be found directly in the impermeable and semipermeable object(like the sweat fingerprint, oil fingerprint, dust fingerprint, occult blood fingerprint ect) in strong fluorescence.
5. To find and locate the invisible DNA biological organism effectively, to improve the rate of checking out DNA
Main parameters:
1. Battery voltage: DC 8.4V Battery capacity: 5000mAh
2. Charging supply: DC 5V/2-3A
3. Output wavelengths:
A.530nm 445nm CSS B.UV C.WT
4. Output wavelengths and power:
A.530nm/2W 445nm/7W CSS/6.5W B.UV/12W C.WT/10W
Size and weight:
Weight: 0.95Kg
Size：Main host：215*123*60 Battery：94*58*30
