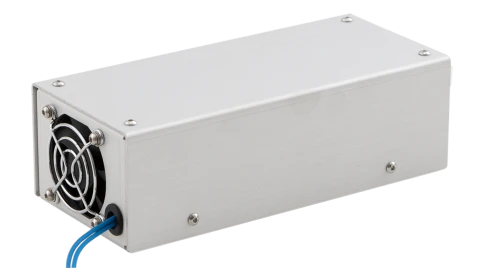

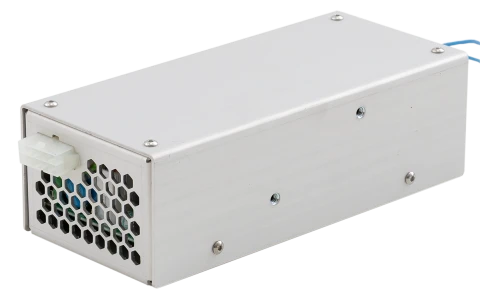

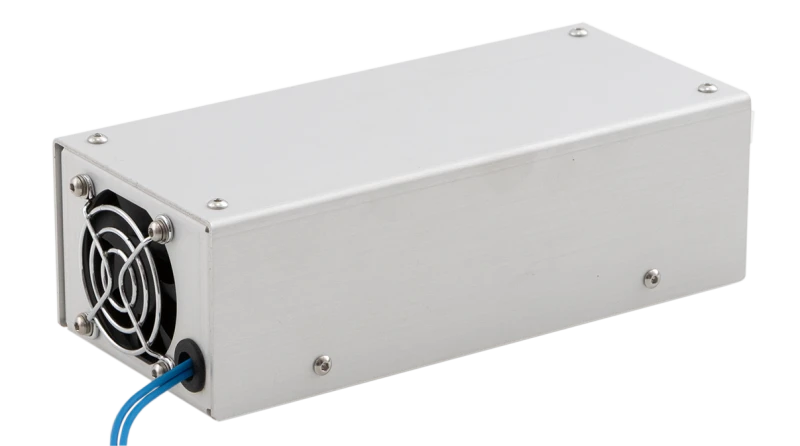

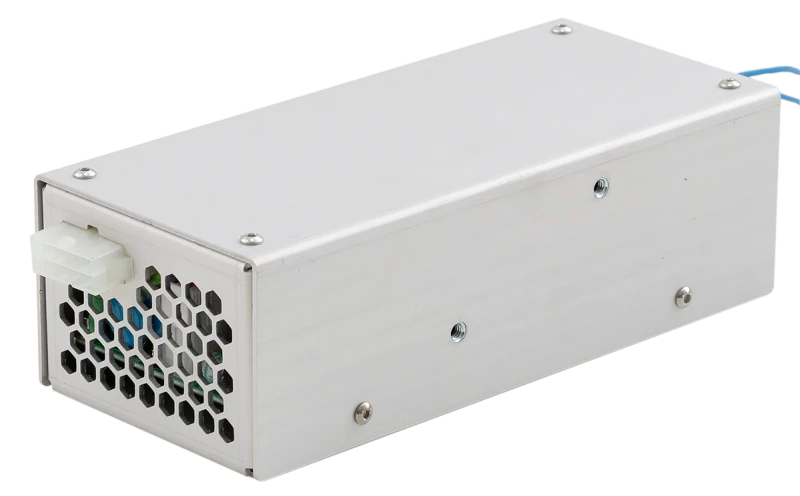

SCA-3008 Simmer Module for Flashlamp Stability

Visit the OEM Tech Store

Specifications

Input Voltage (AC): 230 V
Max Input Current: 0.5 A
Fuse: 1 A
Simmer Output Current: 500 mA
Simmer Max Output Voltage: 300 V
Trigger Voltage: 1000 V
Trigger Pulse Energy: 150 mJ
Restrike Rate: 3 Hz
Output Current: 300-800 mA preset on request
Max. Output Power: > 100 W
Open Circuit Voltage: up to 1500 V
Size (LxWxH): 178x81x57 mm
Weight: 0.5 kg
Document icon Download Data Sheet Download icon

Features


  • Efficient Simmer Supply: The SCA-3008 is designed to trigger and maintain a low-current discharge in flashlamps, enhancing their lifetime and operational stability.

  • Robust Output Capabilities: Delivers a maximum output power more than 100W and supports maximum output current of 800mA, high output voltage of 300V (the performance of simmer module is limited with maximum output current, or with maximum output voltage, or with maximum output power.).

  • Versatile Compatibility: Capable of driving long flashlamps or two standard flashlamps connected in series, adaptable to both serial and parallel triggering systems.

  • Automatic Voltage Adjustment: Output voltage is automatically set based on the current set point and V/A curve of the flashlamp.

  • Flexible Triggering Parameters: Default trigger voltage is 1 kV with an energy pulse of ~150 mJ and a restrike rate of ~3 Hz, customizable upon request.

  • Integrated Protections: Features short circuit and open circuit protections, ensuring reliable operation.

  • Cooling System: Comes with an integrated fan, requiring no additional cooling for optimal performance.

  • Compact and Lightweight: Measures 178x81x57 mm and weighs just 0.5 kg, making it easy to integrate into various systems.

Applications

The SCA-3008 simmer module is used to trigger and maintain a low-current discharge in flashlamps to increase their lifetime and operation stability.
