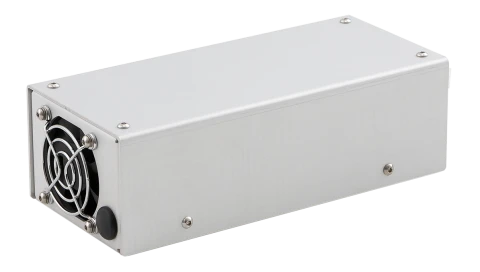

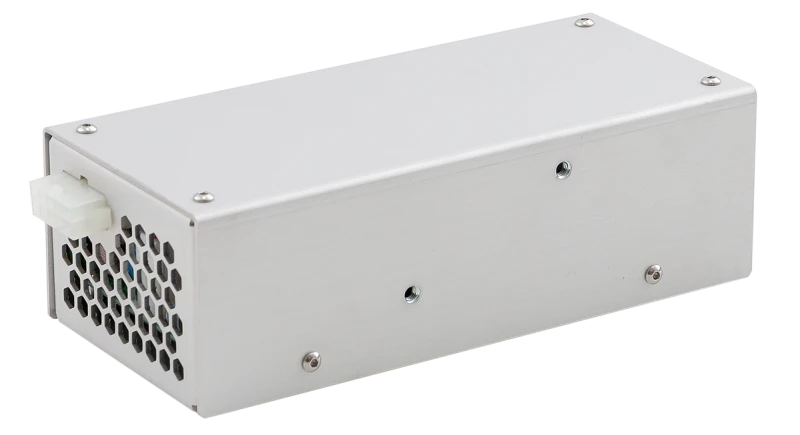

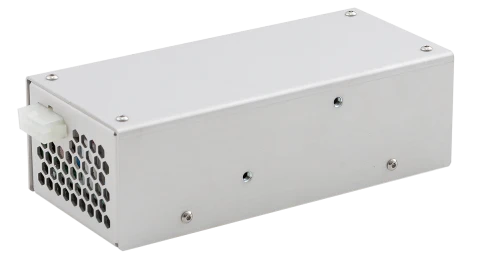

SBZ-3008 Simmer Module for Flashlamp Stability and Longevity

Specifications

Max Input Current: 5 A
Simmer Output Current: 500 mA
Simmer Max Output Voltage: 300 V
Trigger Voltage: 1000 V
Trigger Pulse Energy: 150 mJ
Restrike Rate: 3 Hz
Input Voltage: 24 V DC
Maximum Input Current: 5 A / 10 A (CW / Peak)
Output Current: 300-800 mA preset on request
Max. Output Voltage: 300 V
Max. Output Power: > 100 W
Open Circuit Voltage: up to 1500 V
Size (LxWxH): 178x81x57 mm
Weight: 0.5 kg
Document icon Download Data Sheet Download icon

Features


  • Input Voltage: 24V DC for efficient energy usage.

  • Output Specifications: Max output voltage of 300V, max output current of 800mA, and max output power of 100W, allowing for the operation of long flashlamps or two standard flashlamps in series. The performance of simmer module is limited with maximum output current, or with maximum output voltage, or with maximum output power.

  • Simmer Parameters: Default output current is 500mA (customizable on request), with automatic voltage adjustment according to the flashlamp's V/A curve.

  • Triggering Capabilities: Trigger voltage of 1 kV (customizable on request) with a trigger pulse energy of approximately 150 mJ and a restrike rate of ~3 Hz.

  • Protection Features: Includes short circuit protection at the output and open circuit protection with trigger timeout.

  • Cooling System: Integrated fan ensures no additional cooling is required.

  • Compact Design: Dimensions of 178x81x57 mm and a lightweight build of 0.5 kg for easy integration and installation.

Applications


  • Triggering and maintenance of low-current discharge in a flashlamp
