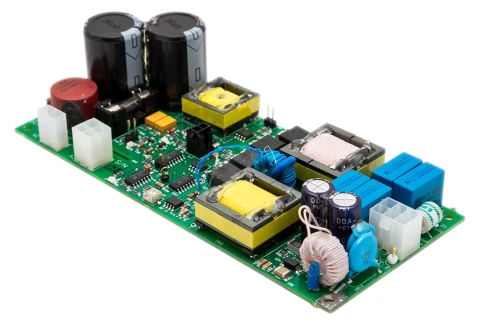

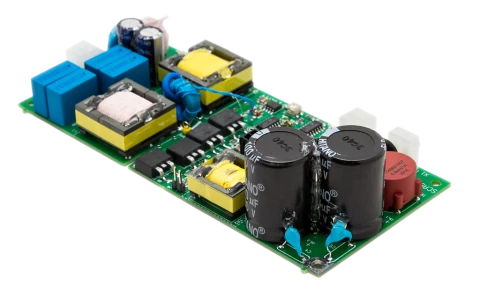

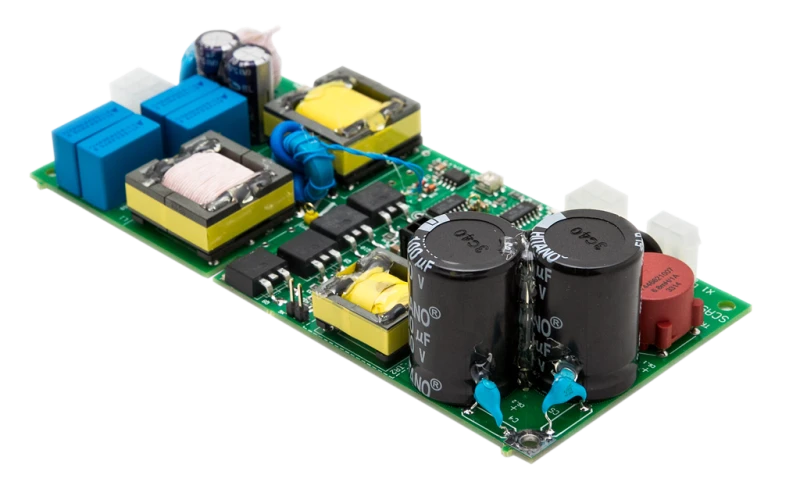

SCA-2008 Simmer Supply for Flashlamps

Specifications

Input Voltage (AC): 230 V
Max Input Current: 0.4 A
Fuse: 1 A
Simmer Output Current: 500 mA
Simmer Max Output Voltage: 200 V
Trigger Voltage: 1000 V
Trigger Pulse Energy: 150 mJ
Restrike Rate: 3 Hz
Input Voltage: 230 V AC, 50/60 Hz
Output Current: 300-800 mA
Max. Output Voltage: 200 V
Max. Output Power: 70 W
Open Circuit Voltage: 1400 V
Size (LxWxH): 150x68x38 mm
Weight: 0.2 kg
Document icon Download Data Sheet Download icon

Features


  • High Efficiency Simmer Supply: The SCA-2008 is designed to strike and maintain a low-current discharge in flashlamps, enhancing their lifetime and operational stability.

  • Wide Input Voltage Range: Operates on a standard 230V AC input voltage, making it suitable for various applications.

  • Adjustable Output Current: Output current ranges from 300-800 mA, adjustable via trimpot, with a default setting of 500 mA.

  • Automatic Voltage Adjustment: The output voltage is automatically set in accordance with the current set point and V/A curve of your flashlamp, with a maximum output voltage of 200V.

  • Maximum Output Power: Capable of delivering up to 70W of power, ensuring efficient performance.

  • Triggering Capabilities: Includes a trigger voltage of 1 kV and trigger pulse energy of approximately 150 mJ, with a restrike rate of ~3 Hz.

  • Built-in Protections: Equipped with short circuit and open circuit protections for enhanced safety and reliability.

  • Compact and Lightweight Design: Measuring 150x68x38 mm and weighing only 0.2 kg, it is easy to integrate into various systems.

  • Versatile Application: Suitable for use in laser systems with both serial and external triggering.

Applications


  • Laser Systems with Serial Triggering: The SCA-2008 is designed to be used in laser systems that employ serial triggering, ensuring consistent performance and enhanced lamp longevity.

  • Laser Systems with External Triggering: It is also suitable for laser systems that utilize external triggering mechanisms, providing flexibility in various operational setups.
