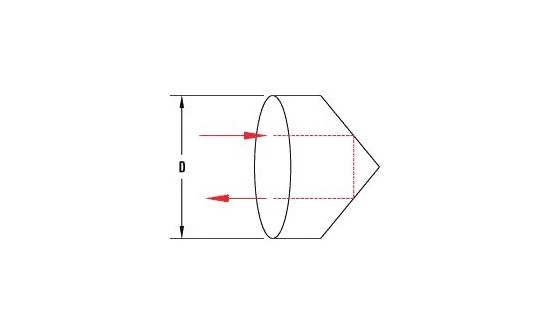

Porro Prisms by Rocky Mountain Instrument Co. are designed to leverage the principle of total internal reflection (TIR), ensuring that light entering perpendicularly through the entrance and exit surfaces is efficiently reflected by the two roof surfaces. This unique design allows the light to emerge parallel to its original path, making Porro Prisms an essential component in optical systems requiring precise light manipulation.
In scenarios where the acceptance angle for TIR is surpassed or where maintaining clean reflecting surfaces is challenging, Porro Prisms offer the flexibility of applying a metal or dielectric coating to enhance performance. This adaptability makes them suitable for a wide range of optical applications, ensuring reliability and precision even in demanding environments.
At Rocky Mountain Instrument Co., we pride ourselves on a collaborative approach with our clients, engaging in the early stages of development to transition prototype concepts into efficient, manufacturable solutions. Our commitment to quality and innovation ensures that our Porro Prisms meet the highest industry standards, providing exceptional performance in diverse optical systems.
Porro Prisms - BK7-UVFS-FS
Specifications |
|
|---|---|
| Material: | BK7, FS, UVFS |
| Dimensions: | Custom |
| Surface Figure: | Lambda/20 @ 633nm |
Features
- Principle of Operation: Porro Prisms utilize total internal reflection (TIR) to reflect light beams, ensuring that the beam emerges parallel to itself.
- Coating Options: For applications where the acceptance angle for TIR is exceeded or surfaces cannot be kept clean, metal or dielectric coatings can be applied to the reflecting surfaces.
- Material Options: Available in BK7, UVFS, and FS materials, providing flexibility for various optical applications.
- Surface Figure: All polished surfaces offer a surface figure of λ/20 at 633 nm, ensuring high precision.
- Surface Quality: High-quality finish with a surface quality of 10-5 for all polished surfaces.
- Dimensional Tolerance: Precision manufacturing with a dimensional tolerance of +0.000", –0.010".
- Angular Deviation: Maintains an exact angular deviation of 180º for consistent performance.
- Bevels: Features 0.010" – 0.030" bevels at 45º on the input edge, with a minimum safety bevel on roof edges for added protection.
- Clear Aperture: Provides a clear aperture exceeding the central 85% of the diameter, ensuring maximum light transmission.
Applications
- Binoculars: Porro prisms are commonly used in binoculars to provide a wider field of view and better depth perception.
- Cameras: Used in some camera systems to correct image orientation and improve optical performance.
- Telescopes: Employed in telescope designs to enhance image clarity and brightness.
- Periscopes: Utilized in periscopes for their ability to reflect light and provide a correct image orientation.
- Optical Instruments: Integral in various optical instruments where image inversion and reflection are needed.
- Scientific Applications: Used in scientific equipment for precise light manipulation and measurement.
- Laser Systems: Incorporated in laser systems for beam alignment and control.
- Medical Devices: Used in medical imaging devices to enhance visualization and accuracy.
Frequently Asked Questions
Porro Prisms operate on the principle of total internal reflection (TIR). A beam entering perpendicular to the entrance / exit surface is reflected by the two roof surfaces and emerges parallel to itself.
The dimensional tolerance of Porro Prisms is + 0.000", – 0.010".
Porro Prisms are made from BK7, UVFS, and FS materials.
The angular deviation of Porro Prisms is 180º.
The surface quality of Porro Prisms is 10-5.
