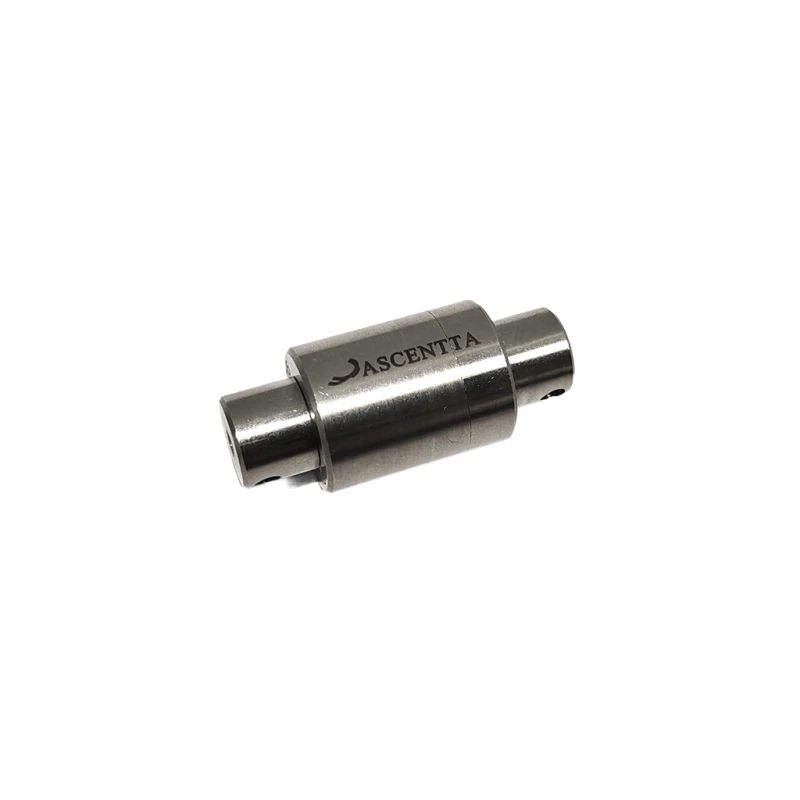

Thumbnail of Polarization Dependent Free Space Isolator (635nm, or 532nm, 650nm, 780nm, 850nm) photo 1

Description

The Optical, TGG, Polarization Dependent, Free Space Isolator by Ascentta, Inc. is a high-quality optical component designed for a wide range of applications. The 635nm Free Space Isolator can support variable clear apertures, optical power handling, and your choice of input and output polarization degree angles such as zero, +/- 45 degrees, or +/- 90degrees, all in a compact package.

Ascentta offers a wide wavelength range customizable from 405nm to 1060nm. For telecom wavelengths such as 1310nm and 1550nm, see Ascentta' s Garnet type Free Space Isolators. All isolators offer exceptional performance,  Ascentta' s Free Space Isolators are the ideal choice for demanding optical systems.

Polarization Dependent Free Space Isolator (635nm, or 532nm, 650nm, 780nm, 850nm)

Visit the Ascentta Store

Specifications

Wavelength: 635 nm
Power: 0.3 W
Isolation Range: 23 – 23 dB
Clear Aperture: 1.5 - 2.5mm or custom
Insertion Loss (23°C) Max.: 0.6 dB
Extinction Ratio Min.: 28 dB
Operating Temperature: +10 to +50 °C
Storage Temperature: 0 to +60 °C
Manufacturer Part Number (MPN): VIC-PDC-635-25-03-16-33
FindLight SKU: FL-18778

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-quality Free Space Isolation
  • Choice of Clear Aperture
  • Wide range of wavelength options: 405nm, 532nm, 635nm, 650nm, 780nm, 850nm, 980nm, 1030nm, 1060nm
  • Specify Isolation Requirements
  • Compact package;  Customizable packages available
  • Optical Power Handling Options
  • Specify Polarization Rotation Angles for Input and Output
  • Reliable and robust design
  • Suitable for various optical systems and setups

Applications

  • Optical fiber communication systems
  • Fiber optic sensing and monitoring
  • Optical network testing and measurement
  • Optical signal detection and analysis
  • Scientific research and development
  • Industrial and manufacturing applications
  • Aerospace and defense industries

Export & Trade Information

ECCN: EAR99
HTS Code: 9027.90.8400
Estimated US Tariff: 0%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is an optical isolator?
An optical isolator is a device that allows light to pass in one direction while preventing it from traveling in the opposite direction, protecting laser sources from destabilizing feedback.
What wavelengths are supported by this optical isolator?
This optical isolator supports wavelengths of 532nm, 635nm, 650nm, 780nm, 850nm, 980nm, 1030nm, and 1060nm.
What is the typical isolation level at 23°C?
The typical isolation level at 23°C ranges from 26 dB to 30 dB, depending on the wavelength.
What is the maximum insertion loss at 23°C?
The maximum insertion loss at 23°C is 0.5 dB to 0.6 dB, depending on the wavelength.
What are the operating and storage temperature ranges for this optical isolator?
The operating temperature range is 10°C to 50°C, and the storage temperature range is 0°C to 60°C.
What are the package dimensions for the optical isolator?
The package dimensions vary by wavelength, with diameters of 16mm or 19mm and lengths ranging from 27mm to 53mm.
How can I order a custom configuration of this optical isolator?
You can contact Ascentta with your custom configuration needs via their phone number, email, or website provided in the datasheet.
