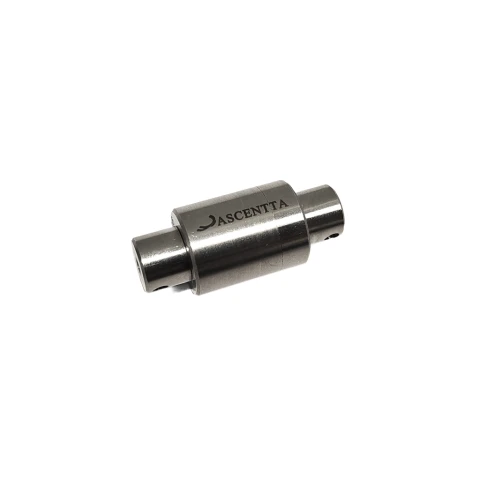

Thumbnail of Ascentta Free Space Faraday Rotator Core (532nm, 633nm, 785nm, 850nm) photo 1

Description

The Faraday Rotator (TGG Type) Core from Ascentta, Inc. is engineered for high-performance optical isolation and rotation in precision photonic systems operating at key wavelengths from 532 nm to 1064 nm. Utilizing Terbium Gallium Garnet (TGG) crystal, this non-reciprocal optical device offers stable and consistent Faraday rotation under various environmental conditions. With ultra-low insertion loss (typ. 0.25 dB) and a high extinction ratio (min. 28 dB), the rotator is ideal for use in laser systems, amplifiers, and optical isolators.

Its robust design supports operation over a wide temperature range (10°C to 50°C) and power levels up to 5 W, making it suitable for demanding applications in research, telecommunications, and industrial laser systems. Offered in a range of clear apertures and mechanical sizes, Ascentta’s rotator cores are customizable to meet your exact system requirements. Make inquiries for bespoke configurations to match specific wavelength, power, or dimensional needs.

Ascentta Free Space Faraday Rotator Core (532nm, 633nm, 785nm, 850nm)

Visit the Ascentta Store

Specifications

Wavelength: 850 nm
Bandwidth: 5 nm
Power: 1 W
Isolation Range: 1 – 1 dB
Extinction Ratio: 28 dB
Insertion Loss (23℃): 0.4 dB
Rotation Angle: 45 deg
Clear Aperture: 1.8 mm
Operation Temperature: +10 to +50 ℃
Storage Temperature: 0 to +60 °C
Manufacturer Part Number (MPN): VFRC-450-850-24-03-16-30
FindLight SKU: FL-21764

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide Wavelength Coverage: Available for 532, 650, 780, 850, 980, 1030, 1053, and 1064 nm
  • Low Insertion Loss: Typical loss of only 0.25 dB at 23°C
  • High Extinction Ratio: Minimum ER of 28 dB ensures excellent optical isolation
  • Customizable Options: Tailor the aperture, rotation angle, and package dimensions
  • High Power Handling: Supports optical power levels up to 5 W

Applications

  • Laser Systems: Ensures unidirectional light flow and protects laser cavities
  • Optical Isolators: Core component for minimizing back-reflections
  • Telecommunication Networks: Used in optical signal control and routing
  • Research & Development: Enables precision optical experiments
  • Medical & Industrial Lasers: Supports wavelength-specific power rotation

Export & Trade Information

ECCN: EAR99
HTS Code: 9027.90.8400
Estimated US Tariff: 0%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the bandwidth for each wavelength?
The bandwidth for all wavelengths is ±5 nm.
What is the typical and maximum insertion loss at 23°C for each wavelength?
For all wavelengths, the typical insertion loss is 0.25 dB and the maximum insertion loss is 0.4 dB.
What is the minimum ER for each wavelength?
The minimum ER for all wavelengths is 28 dB.
What are the dimensions of the package for each wavelength?
The package dimensions are Ф16xL15 mm for 532, 650 nm, Ф16xL30 mm for 780, 850 nm, and Ф19xL37 mm for 980, 1030, 1053, 1064 nm.
What are the operating and storage temperatures?
The operating temperature is from 10 to 50°C and the storage temperature is from 0 to 60°C.
What are the guidelines for ordering a custom configuration?
Contact Ascentta with your custom configuration needs, specifying the rotation angle, wavelength, clear aperture, max power, diameter and length. For example, 'VFRC450=45 Degrees' for rotation angle, '780=780nm' for wavelength, '10=1.0mm' for clear aperture, '03=0.3W' for max power, '16=16mm' for diameter and '15=15mm' for length. The given codes such as '850=850nm', '18=1.8mm' etc., should be used to specify other options.

Got more questions? Use the inquiry form to ask the supplier directly.
