Glan Taylor Polarizer for Low-Medium Power Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Description
The Glan Taylor polarizer represents a sophisticated optical component designed for precision and reliability. This polarizer is constructed using two birefringent prisms, meticulously assembled with an air space to ensure optimal performance. The absence of side escape windows makes it particularly suitable for low to medium power applications, where side-rejected beams are unnecessary. This design choice enhances its versatility and utility in various optical setups.
Designed with a focus on quality and performance, the Glan Taylor polarizer is air-spaced and cut close to Brewster's Angle, which contributes to its high polarization purity. Its compact and short length design allows for easy integration into existing systems without compromising on performance. The polarizer also boasts a wide wavelength range, making it adaptable to a variety of optical requirements. The use of materials such as a-BBO, Calcite, or YVO4 further ensures that it meets diverse application needs while maintaining high standards of optical clarity and performance.
Commitment to excellence is evident in the specifications of this product. With an impressive extinction ratio and superior surface quality, the Glan Taylor polarizer is engineered to deliver precise and accurate results. The product's robust design, featuring a black anodized aluminum mount and single MgF2 coating, ensures durability and longevity even in demanding environments. Whether for research, industrial applications, or specialized optical systems, the Glan Taylor polarizer stands as a testament to dedication to quality and innovation in optical solutions.

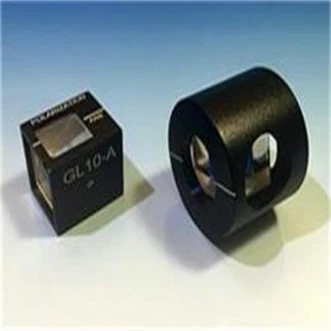

Glan Taylor Polarizer for Low-Medium Power Applications
Specifications |
|
|---|---|
| Prism Material: | a-BBO, YVO4, Custom, Calcite |
| Coating: | No Coating, AR Coating, MgF2, Custom |
| Wavelength Range: | 200 – 4000 nm |
| Max Extinction Ratio: | >= 10000:1, >= 3000:1, >= 1000:1 |
| Wavefront Distortion: | <= Lambda/10, <= Lambda/6, <= Lambda/4 |
| Surface Quality (Input, Output Face): | 40-20 scratch dig, 10-5 scratch-dig, 20-10 scratch-dig, 60-40 scratch-dig |
| Surface Quality (Side Faces): | 10-5 scratch-dig, 20-10 scratch-dig, 40-20 scratch-dig, 60-40 scratch-dig |
| Clear Aperture: | 6 mm |
| Material: | a-BBO, Calcite or YVO4 |
| Wavelength Range: | BBO: 200～3500 nm, Calcite: 350～2300 nm, YVO4: 500～4000 nm |
| Extinction Ratio: | Calcite: <5x10-5, a-BBO: <5x10-6, YVO4: <5x10-6 |
| Surface Quality: | 20 / 10 |
| Parallelism: | <1 arc Min |
| Beam Deviation: | < 3 arc minutes |
| Wavefront Distortion: | λ /4@633nm |
| Damage Threshold: | >200 MW/cm2 |
| Coating: | Single MgF2 |
| Mount: | Black Anodized Aluminium |
Features
- Air-Spaced Design: Constructed with two birefringent prisms and an air space for enhanced performance.
- Close to Brewster's Angle Cutting: Optimized for high polarization purity.
- High Polarization Purity: Ensures superior optical quality and performance.
- Compact and Short Length: Designed for efficient space utilization.
- Wide Wavelength Range:
- BBO: 200～3500 nm
- Calcite: 350～2300 nm
- YVO4: 500～4000 nm
- Low to Medium Power Applications: Ideal for applications where side rejected beams are not required.
- Material Options: Available in a-BBO, Calcite, or YVO4.
- Extinction Ratio:
- Calcite: <5x10-5
- a-BBO: <5x10-6
- YVO4: <5x10-6
- Surface Quality: 20 / 10 for superior optical clarity.
- Precision Parallelism: <1 arc minute for accurate beam alignment.
- Minimal Beam Deviation: <3 arc minutes to maintain beam integrity.
- Wavefront Distortion: λ/4@633nm for high-quality wavefront performance.
- High Damage Threshold: >200 MW/cm2 for durability under high power.
- Coating: Single MgF2 for enhanced optical performance.
- Mount: Black anodized aluminum for robust and durable housing.
Applications
- Spectroscopy
- Laser optics
- Inspection
- Imaging
Frequently Asked Questions

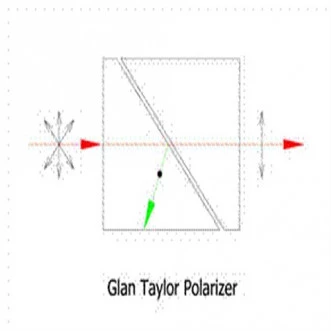

Glan Taylor Polarizer is made of two birefringent prisms that are assembled with an air space. It has no side escape windows and is suitable for low to medium power applications where the side rejected beams are not required. It has features like air-spaced, close to Brewster's Angle Cutting, high polarization purity, short length, wide wavelength range, and suitable for low to medium power application.
The specifications of the Glan Taylor Polarizer include material options like a-BBO, Calcite, or YVO4, wavelength range, extinction ratio, surface quality, parallelism, beam deviation, wavefront distortion, damage threshold, coating, and mount.
A Glan Laser Polarizer is made of two birefringent material prisms that are assembled with an air space. It is designed to have less reflection loss at the prism junction and has two escape windows that allow the rejected beam to escape out of the polarizer.
The angular field of a-BBO Glan Taylor Polarizer is greater than 6.0 degrees.
The wavelength range of Calcite Glan Taylor Polarizer is 350-2300 nm.
