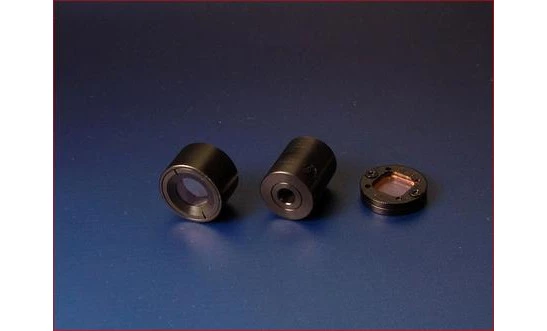

Glan Laser Polarizers
Description
A Glan–laser prism is a type of prism which is used as a polarizer or polarizing beam splitter. It is one of the most common types of modern polarizing prism.
The prism is made of two right-angled prisms of calcite(or a-BBO、YVO4) which are separated on their long faces with an air gap. These polarizers are typically designed to tolerate very high beam intensities, such those produced by a laser. Prisms with irradiance damage thresholds greater than 1GW/cm2 are commercially available.
Glan Laser Polarizers
Specifications |
|
|---|---|
| Prism Material: | Calcite |
| Coating: | MgF2 |
| Wavelength Range: | 350-2300nm |
| Max Extinction Ratio: | >= 10000:1 |
| Wavefront Distortion: | <= Lambda/4 |
| Surface Quality (Input, Output Face): | 20-10 scratch-dig |
| Surface Quality (Side Faces): | 20-10 scratch-dig |
| Clear Aperture: | 8 mm |
Applications
Laser applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
A Glan-laser prism is a type of prism used as a polarizer or polarizing beam splitter, made of two right-angled prisms of calcite (or a-BBO, YVO4) separated by an air gap.
Glan-laser polarizers are typically used in laser applications.
The wavelength range of Glan-laser polarizers varies depending on the material used, with calcite ranging from 350-2300nm and a-BBO ranging from 200-3500nm.
Glan-laser polarizers are designed to tolerate very high beam intensities, with commercially available prisms having irradiance damage thresholds greater than 1GW/cm2.
Glan-Taylor polarizers are available in both calcite and a-BBO materials, with a wavelength range of 350-2300nm for calcite and 200-1100nm for a-BBO. They have a surface quality of 20/10 and a beam deviation of less than 3 arc min. The housing is made of black anodized aluminum and they are available in various mounting sizes.
