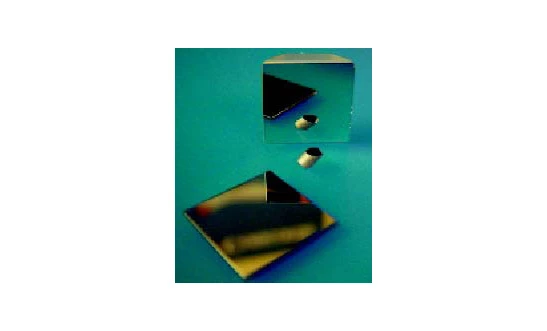

UV Grade Fused Silica Mirror and High Grade MF22-050

Specifications

Reflective Coating: Protected Silver, Protected Aluminum
Substrate: UV Fused Silica
Average Reflectance: 95 %
Wavelength Range: 500 – 1000 nm
Surface Flatness: lambda/10
Surface Quality: 10-5 scratch-dig
Diameter: 50 mm
Thickness: 10 mm
Shape: Square, Rectangle
Document icon Download Data Sheet Download icon

Features


  • High-Quality Reflective Surface: All mirrors feature a highly polished surface with a protected aluminum coating applied to the front, ensuring excellent light reflection.

  • First Surface Mirrors: Designed with the reflective coating on the front surface to eliminate optical distortion from the glass, providing superior optical performance.

  • Material Options: Available in BK7 Grade A optical glass and UV Grade Fused Silica, catering to various optical applications.

  • Dimensional Precision: Mirrors are crafted with a dimensional tolerance of +0.0/-0.1mm, ensuring precise fit and alignment in optical systems.

  • Surface Flatness: Standard grade mirrors offer λ/5 flatness at 632.8nm, while high-grade mirrors provide λ/10 flatness for enhanced optical clarity.

  • Surface Quality: Scratch/Dig specifications of 40/20 for standard grade and 10/5 for high-grade mirrors, ensuring minimal surface imperfections.

  • Thickness Tolerance: Consistent thickness with a tolerance of ±0.2mm, maintaining uniformity across all mirror sizes.

  • Parallelism: Mirrors are manufactured with parallelism of less than 3 arc minutes, ensuring precise optical alignment.

  • Custom Solutions Available: Custom versions can be made to your specifications. Send your drawings or requirements for a tailored quotation.

Applications


  • Laser Systems: Precision beam steering and reflection in industrial and research lasers.

  • Imaging & Projection: High-quality reflection for cameras, telescopes, and optical instruments.

  • Scientific Instrumentation: Accurate reflection for laboratory setups and metrology.

  • OEM Optical Devices: Integration into commercial optical systems requiring reliable reflection.

  • UV & Visible Applications: Suitable for both standard visible spectrum and UV light handling with fused silica substrates
