UV Grade Fused Silica Mirror and High Grade MF22-038
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

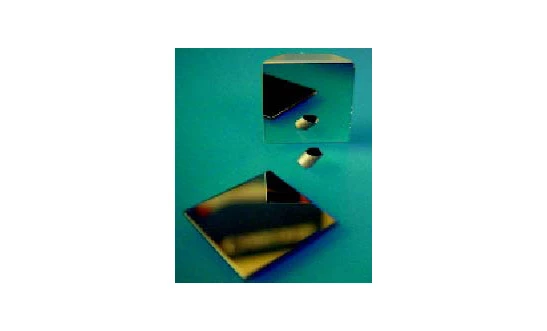

Circular, Square, Rectangular Mirrors offer a versatile solution for a variety of optical needs. These mirrors are crafted with a highly polished surface designed to reflect light efficiently. The reflecting surface is typically a thin coating of aluminum or silver, applied to the front surface of the mirror. This design, known as a first surface mirror, ensures that the optical properties of the glass do not interfere with the incident or reflected light, providing a clear and precise reflection. The rear surface of these mirrors is usually fine ground, enhancing their overall quality and performance.
Each mirror in this collection features a protected aluminum coating on the front surface, ensuring durability and longevity. The mirrors are available in both standard and high-grade options, with materials such as BK7 grade A optical glass and UV grade fused silica. These materials are chosen for their superior optical clarity and reliability, making them ideal for precision applications. The mirrors are crafted with meticulous attention to detail, adhering to strict dimensional tolerances and surface quality standards.
At Tower Optical, we understand that every project is unique. That's why we offer custom versions of all our mirrors. Simply provide us with your drawings or specifications, and we will deliver a quotation tailored to your specific requirements. Our commitment to quality and customer satisfaction is reflected in every product we offer, ensuring that you receive a mirror that meets your exact needs.
UV Grade Fused Silica Mirror and High Grade MF22-038
Specifications |
|
|---|---|
| Reflective Coating: | Protected Silver, Protected Aluminum |
| Substrate: | UV Fused Silica |
| Average Reflectance: | 95 % |
| Wavelength Range: | 500 – 1000 nm |
| Surface Flatness: | lambda/10 |
| Surface Quality: | 10-5 scratch-dig |
| Diameter: | 38 mm |
| Thickness: | 10 mm |
Features
- High-Quality Reflective Surface: Our mirrors feature a highly polished surface with a thin coating of aluminum or silver, ensuring optimal light reflection.
- First Surface Mirrors: Designed with the coating on the front surface to eliminate the optical properties of the glass, enhancing the clarity of incident and reflected light.
- Protected Aluminum Coating: All mirrors come with a protected aluminum coating applied to the front surface for durability and longevity.
- Material Options: Available in BK7 Grade A Optical Glass and UV Grade Fused Silica for diverse optical applications.
- Customizable Options: We offer custom versions of all products. Send us your drawings or specifications for a personalized quotation.
- Various Sizes Available: Choose from a range of diameters and thicknesses to suit your specific needs.
Applications
- Optical Instrumentation: Provides precise reflection in laboratory and research setups.
- Laser Systems: Ensures stable performance in beam steering and alignment.
- Imaging and Sensing: Suitable for cameras, sensors, and diagnostic equipment.
- Metrology: High flatness supports accurate measurement applications.
- Scientific Research: Reliable component for spectroscopy and optical experiments.
Frequently Asked Questions
The UV Grade Fused Silica Mirror is used for reflecting light in optical applications.
The reflecting surface is usually a thin coating of aluminum or silver.
A first surface mirror is a mirror where the coating is on the front surface, thereby eliminating the optical properties of the glass from affecting the incident or reflected light.
The thickness tolerance of the mirror is ± 0.2 mm.
The surface quality of the mirror is scratch/dig 40/20 or 10/5.
