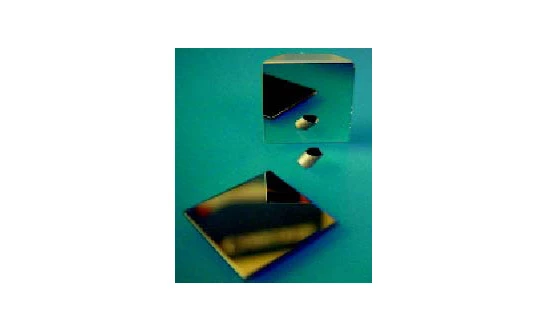

Circular, Square, Rectangular Mirrors with Protected Aluminum Coating

Specifications

Reflective Coating: Protected Silver, Protected Aluminum
Substrate: BK7
Average Reflectance: 95 %
Wavelength Range: 500 – 1000 nm
Surface Flatness: lambda/10
Surface Quality: 10-5 scratch-dig
Diameter: 50 mm
Thickness: 10 mm
Shape: Round, Square
Document icon Download Data Sheet Download icon

Features


  • High-Quality Reflective Surface: Our mirrors feature a highly polished surface with a thin coating of aluminum or silver, ensuring optimal light reflection.

  • First Surface Mirrors: Designed with the reflective coating on the front surface to eliminate the optical properties of the glass, enhancing the quality of incident and reflected light.

  • Protected Aluminum Coating: All mirrors come with a durable aluminum coating applied to the front surface for increased longevity and performance.

  • Material Options: Available in BK7 grade A optical glass and UV grade fused silica for diverse application needs.

  • Customizable Options: We offer custom versions of all products. Send us your drawings or specifications for a tailored solution.

  • Available Sizes and Models: Choose from a range of diameters and thicknesses to suit your specific needs, with models available in both standard and high grades.

Applications


  • Laser Systems: Beam routing and manipulation.

  • Optical Instruments: Imaging, measurement, and sensing.

  • Scientific Research: Laboratory and experimental setups.

  • Industrial Applications: Alignment, metrology, and inspection systems.

  • Custom Engineering Projects: Tailored mirrors for unique optical requirements.
