Description
- Substrate Material: BK7 or Fused silica
- Dimension: Dia.25 (+0/-0.2) x1 (+/-0.2) mm (typically)
- Flatness: L/10 commonly, L/10 for laser application
- Surface quality: 20-10 (subatrate for laser application), 60-40 commonly
- Parallelism: < 1 arc minute
- Clear aperture: >85%
- Protective chamfer
- Coating: Al +sio , Au

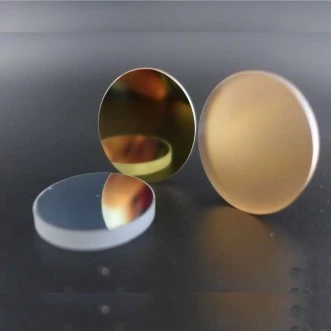

Optical Glass Metal Coated Reflective Mirror
Specifications
| Diameter: | 25 mm |
|---|---|
| Thickness: | 1 mm |
| Surface Flatness: | lambda/10 |
| Surface Quality: | 40-20 scratch-dig |
| Transmission: | 10 % |
| Reflection: | 95 % |
| Transmission Range: | 800 – 1100 nm |
| Reflection Range: | 400 – 700 nm |
Download Data Sheet
Applications
- Laser optics
- Imaging
- Spectroscopy
Frequently Asked Questions
What is the surface quality of the reflected mirror?
The surface quality of the reflected mirror is 20-10 (subatrate for laser application), and 60-40 commonly.
What is the flatness of the reflected mirror?
The flatness of the reflected mirror is commonly L/10, and L/10 for laser application.
What are the dimensions of the reflected mirror?
The typical dimensions of the reflected mirror are Dia.25 (+0/-0.2) x1 (+/-0.2) mm.
What is the protective coating of the reflected mirror?
The protective coating of the reflected mirror can be either Al +sio or Au.
What is the substrate material of the reflected mirror?
The substrate material can be either BK7 or Fused silica.
