Description
Acton Optics presents Dichroic Mirrors featuring specialized multilayer dielectric coatings for UV/VIS and UV/IR applications. These mirrors enable the reflection of specific UV laser wavelengths while ensuring good broadband VIS/NIR transmittance.
UV/VIS Dichroic Mirrors utilize UV laser-grade fused silica substrates optimized for 45° angles, with custom angles available upon request. UV/IR Dichroic Mirrors, designed for UV laser wavelengths, transmit into the infrared region, with coatings applied to high-quality CaF2 substrates.

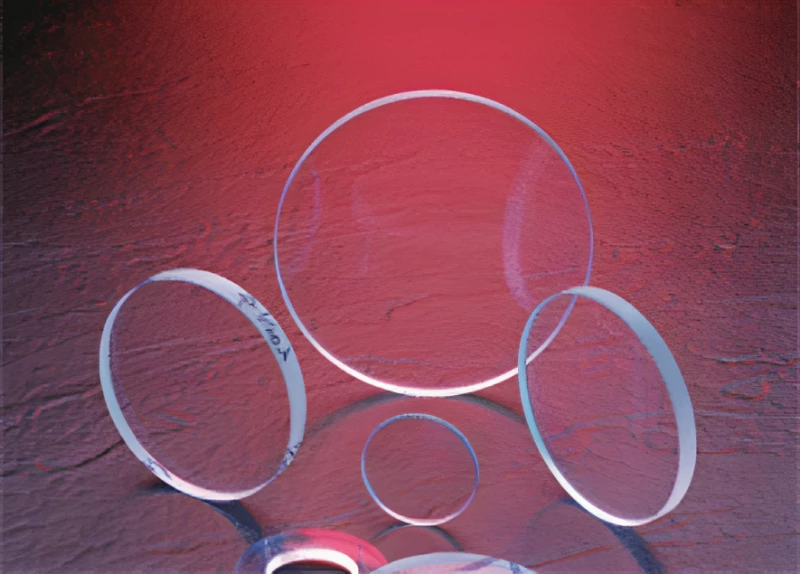

UV-VIS Dichroic Mirror 212nm 212/V-FR45-2D-MB (2.0” Diameter)
Specifications
Wavelength Range: | UV (200-400 nm) |
---|---|
Transmission Range: | Not Specified |
Reflection Range: | Not Specified |
Angle Of Incidence: | 45° |
Substrate Material: | UV-grade Fused Silica |
Shape: | Circular |
Surface Quality: | Other (not specified) |
Center Wavelength: | 212 nm |
Reflectance: | ≥ 95 % |
Diameter: | 50.8 mm |
Features
- Multilayer Dielectric Coatings: Specialized coatings for UV/VIS and UV/IR applications
- UV Laser Reflectance: Reflects UV laser wavelengths with high efficiency
- Broadband VIS/NIR Transmittance: Ensures good transmittance in the visible and near-infrared spectrum
- Optimized Angles: UV/VIS Dichroic Mirrors optimized for 45° angles; custom angles available
- High-Quality Substrates: UV/VIS mirrors with UV laser-grade fused silica; UV/IR mirrors with CaF2 substrates
Applications
- UV Laser Systems: Beam combining or beam separation applications
- Infrared Imaging: UV/IR Dichroic Mirrors transmit specific UV wavelengths into the infrared region
- Research and Industrial Applications: Used in various research and industrial optical setups
