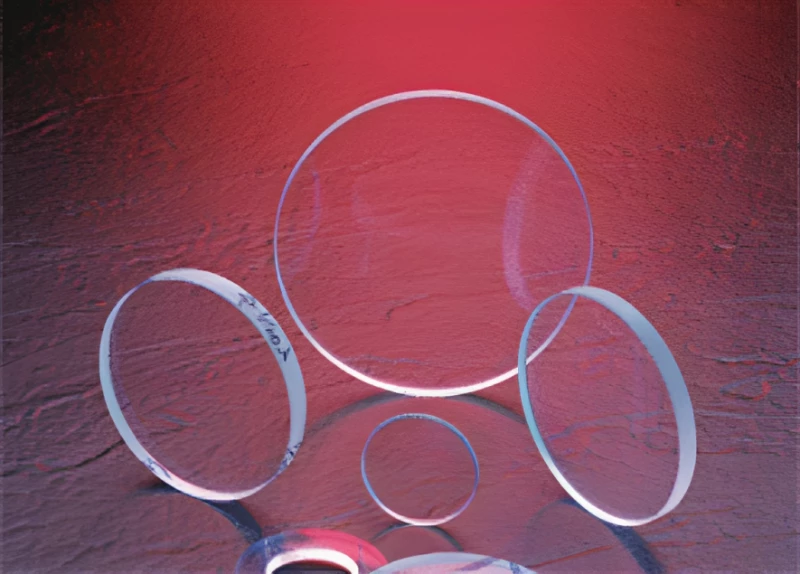

UV-IR Dichroic Mirror 193nm 193/V-FR45-1D-MB (1.0” Diameter)

Visit the Teledyne Acton Optics Store

Specifications

Wavelength Range: Deep UV (< 200nm)
Transmission Range: Not Specified
Reflection Range: Not Specified
Angle Of Incidence: 45°
Substrate Material: Calcium Fluoride (CaF2)
Shape: Circular
Surface Quality: Other (not specified)
Center Wavelength: 193 nm
Reflectance: ≥ 94 %
Diameter: 25.4 %
Document icon Download Data Sheet Download icon

Features


  • Multilayer Dielectric Coatings: Specialized coatings for UV/VIS and UV/IR applications

  • UV Laser Reflectance: Reflects UV laser wavelengths with high efficiency

  • Broadband VIS/NIR Transmittance: Ensures good transmittance in the visible and near-infrared spectrum

  • Optimized Angles: UV/VIS Dichroic Mirrors optimized for 45° angles; custom angles available

  • High-Quality Substrates: UV/VIS mirrors with UV laser-grade fused silica; UV/IR mirrors with CaF2 substrates

Applications


  • UV Laser Systems: Beam combining or beam separation applications

  • Infrared Imaging: UV/IR Dichroic Mirrors transmit specific UV wavelengths into the infrared region

  • Research and Industrial Applications: Used in various research and industrial optical setups
