Description
Acton's Enhanced Broadband MLD (Multi-Layer Dielectric) Mirrors feature the advanced #1900 coatings, offering increased reflectance over the critical range of 190 nm to 250 nm.
Designed with enhanced durability, these mirrors resist humidity and can be effortlessly cleaned using a simple drag-and-drop method. Each coating lot is meticulously measured for reflectance properties, ensuring exceptional and consistent performance for every mirror supplied.
Enhanced Broadband MLD Mirror 190-250nm M190-AL/MLD-1.5D-MB (1.5" Diameter)
Specifications
Substrate Material: | Metallic |
---|---|
Flatness: | Not Specified |
Surface Quality: | Custom |
Angle Of Incidence (AOI): | Not Specified |
Wavelength Range: | 190 – 250 nm |

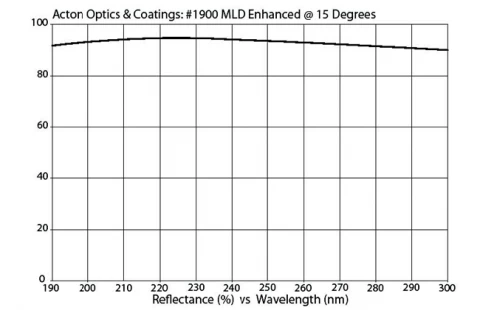

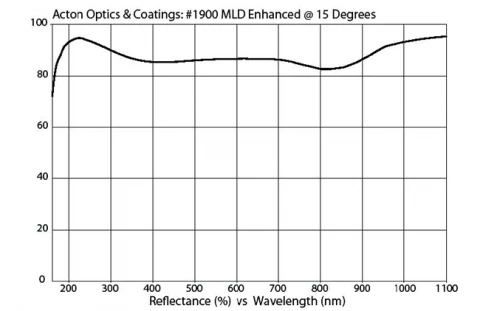

Reflectance: | 92 % |
Diameter: | 38.1 mm |
Thickness: | 6.35 mm |
Features
- Enhanced Reflectance: Specifically optimized for increased reflectance in the critical range of 190 nm to 250 nm
- Durability: Coatings are designed to resist humidity, ensuring long-lasting performance in various environments
- Easy Maintenance: Mirrors can be easily cleaned using a simple drag-and-drop cleaning method
Applications
- DUV Spectrophotometers: Ideal for precise measurements in deep ultraviolet spectrophotometry
- Ellipsometers: Perfect for ellipsometric studies in the critical wavelength range
- Analytical Instrumentation: Enhances the performance of VUV/UV-based analytical instruments
- ICP Spectrometers: Improves spectral analysis in inductively coupled plasma spectrometry
- Aerospace Applications: Suitable for aerospace applications demanding high-performance mirrors
