Description

Union Optic offers laser protection window for applications which require protecting laser output. High damage threshold (>15J/cm2) AR coating on both sides can minimize the reflections.

These windows are used in front of lasers for material processing in order to protect the laser optics from hot material drops.

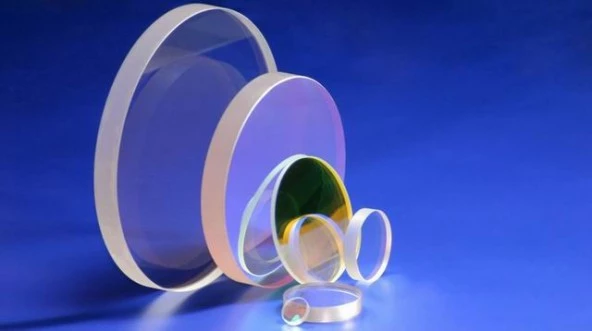

Laser Protection Window

Specifications

Substrate Material: N-BK7, Fused Silica
Diameter (or Largest Dimension): 25.4 mm
Thickness: 3 mm
Antireflection Coating: Coated
Surface Quality (Scratch-Dig): 60-40
Surface Flatness: <= Lambda

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Material Fused Silica
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >80%
Parallelism <1 arc minute
<!--1-->Surface Quality 60/40 scratch and dig
Transmitted Wavefront Distortion <λ@633nm per 25mm
Chamfer <0.5mmx45deg
<!--0-->Coating Both sides AR coated for YAG laser, R<0.5%@1047-1064nm per surface, AOI 0deg, damage threshold >15J/cm2, 20ns, 20Hz, @1064nm

Frequently Asked Questions

What type of coating does the laser protection window have?
The laser protection window has both sides AR coated for YAG laser, R<0.5%@1047-1064nm per surface, AOI 0deg, with a damage threshold of >15J/cm2, 20ns, 20Hz, @1064nm.
What is the purpose of a laser protection window?
A laser protection window is used to protect laser output and optics from hot material drops during material processing.
What is the damage threshold of the laser protection window?
The laser protection window has a high damage threshold of >15J/cm2.
What is the thickness tolerance of the laser protection window?
The thickness tolerance of the laser protection window is ±0.2mm.
What is the material used for the laser protection window?
The laser protection window is made of fused silica.

Got more questions? Use the inquiry form to ask the supplier directly.
