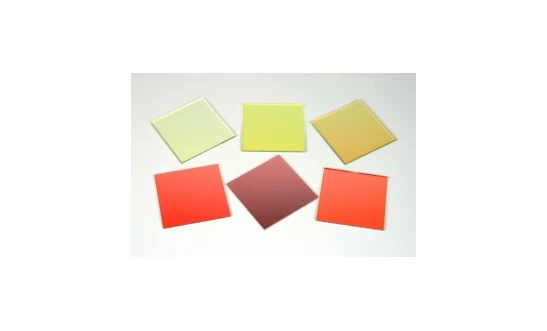

645FDL50 - Dichroic Longpass Filters
Description
Longpass filters are designed to transmit wavelengths higher than the cut on point and reflect all lower wavelengths. These dichroic longpass filters consist of thin-film dielectric coatings on glass with sharp transitions between the transmitted and reflected bands. Having negligible absorption they are suitable for high powers and do not show the strong fluorescence of certain glass filters.
Our dichroic longpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types. We are happy to cut and edge filters for non standard sizes to suit your application.
645FDL50 - Dichroic Longpass Filters
Specifications |
|
|---|---|
| Diameter: | 0.0 mm |
| Thickness: | 1.1 mm |
| Transmission Wavelength Range: | 645-2600nm |
| Cut-On Wavelength: | 645 nm |
| Transmission: | 95 % |
| Blocking (Optical Density): | OD<1 |
| Length: | 50.0 mm |
| Width: | 50.0 mm |
Features
Available size: Square 7mm-300mm, Diameter 10mm-400mm.
Cutting down or edged to special shapes and sizes at short notice.
Mounting of diameters and squares.
Available in sets, supplied in a wooden storage box for research and laboratory use.
Applications
Dichroic longpass filters are used in several applications such as stage lighting and entertainment.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Dichroic longpass filters are available in standard 12.5mm and 25mm diameter or 50mm square types. They can also be cut and edged for non-standard sizes to suit your application, ranging from square 7mm-300mm and diameter 10mm-400mm.
The most frequently requested specifications for all dichroic filter types are the available size, cutting tolerance, glass substrate, dichroic filter types, wavelengths, wavelength accuracy, and transmission.
The different types of dichroic filters available are longpass, shortpass, bandpass, bandblocking, hot and cold mirrors, IR and UV cut-off.
Dichroic longpass filters are used to transmit wavelengths higher than the cut on point and reflect all lower wavelengths.
Dichroic longpass filters are commonly used in applications such as stage lighting and entertainment.
