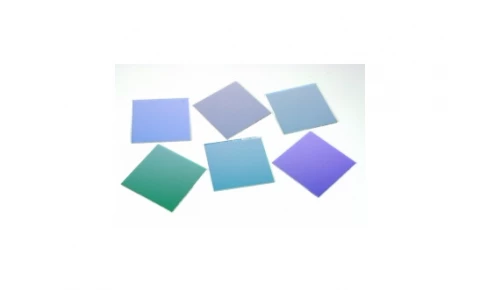

510FDC25 - Dichroic Bandpass Filters

Knight Optical (UK) Ltd

OVERVIEW

Dichroic bandpass filters are designed to transmit highly over a specific limited bandwidth while reflecting all other wavelengths. Their design allowed them to isolate the desired wavelength. Dichroic filters offer superior contrast between transmitted and reflected wavelengths. Having negligible absorption they are suitable for high powers and do not show the strong fluorescence of certain glass filters.

Our dichroic bandpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types.

SPECIFICATION

Central Wavelength: 510 nm
Bandwidth (FWHM): 90 nm
Peak Transmittance: 95% %
Diameter: 12.5 mm

Download Data Sheet

Applications

Dichroic filters are used in several different types of application including entertainment and stage lighting.

KEY FEATURES

Available size: Square 7mm-300mm, Diameter 10mm-400mm
Cutting down or edged to special shapes and sizes at short notice.
Mounting of diameters and squares.
Available in sets, supplied in a wooden storage box for research and laboratory use.
