510FDC12 - Dichroic Bandpass Filters
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Description

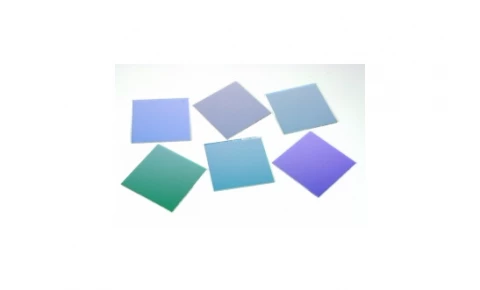

Dichroic bandpass filters are designed to transmit highly over a specific limited bandwidth while reflecting all other wavelengths. Their design allowed them to isolate the desired wavelength. Dichroic filters offer superior contrast between transmitted and reflected wavelengths. Having negligible absorption they are suitable for high powers and do not show the strong fluorescence of certain glass filters.
Our dichroic bandpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types.
510FDC12 - Dichroic Bandpass Filters
Specifications |
|
|---|---|
| Central Wavelength: | 510 nm |
| Bandwidth (FWHM): | 90 nm |
| Peak Transmittance: | 95 % |
| Diameter: | 12.5 mm |
Features
Available size: Square 7mm-300mm, Diameter 10mm-400mm
Cutting down or edged to special shapes and sizes at short notice.
Mounting of diameters and squares.
Available in sets, supplied in a wooden storage box for research and laboratory use.
Applications
Dichroic filters are used in several different types of application including entertainment and stage lighting.
Frequently Asked Questions
Yes, we are also able to supply bespoke shapes, no matter how complex, to fit your requirements. Our capabilities are always expanding so if your requirements are not met above please enquire as we have many years of experience in this field.
Dichroic bandpass filters are designed to transmit highly over a specific limited bandwidth while reflecting all other wavelengths. They are used in several different types of application including entertainment and stage lighting.
The most frequently requested specifications for all dichroic filter types are available size, cutting tolerance, glass substrate, dichroic filter types, wavelengths, wavelength accuracy, and transmission.
Our dichroic bandpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types. Available size: Square 7mm-300mm, Diameter 10mm-400mm.
The cutting tolerance for the dichroic bandpass filters is +/-0.2mm.
