Description
Enhance your manufacturing capabilities with Ibsen Photonics' cutting-edge gratings in fiber and waveguide-based components. Our holographically produced Ibsen Phase masks deliver exceptional period accuracy down to +/- 0.1 Ångström, significantly boosting customer manufacturing performance and yield. The clear on-mask identification simplifies handling during manufacturing, leading to improved operational costs and efficiency for our clients. By offering flexible specifications tailored to customer needs and optional extensive characterization, we further enhance the manufacturability of grating-based components.
The innovative +1/-1 order Phase mask principle is designed to optimally diffract light into the plus first and minus first orders. This self-interference between the two orders creates an interference pattern with half the Phase mask period, ensuring precision and efficiency. Ibsen's series of +1/-1 order Phase masks are crafted with highly suppressed zero order, allowing for superior performance in various applications.
Our commitment to quality is evident in the production of these masks in a 100% cleanroom environment, ensuring period accuracy and uniformity of +/- 0.01 nm. This meticulous attention to detail ensures that our products meet the highest standards required for advanced applications. Whether you require standard grating sizes or custom dimensions, Ibsen Photonics offers solutions that cater to your specific manufacturing needs.

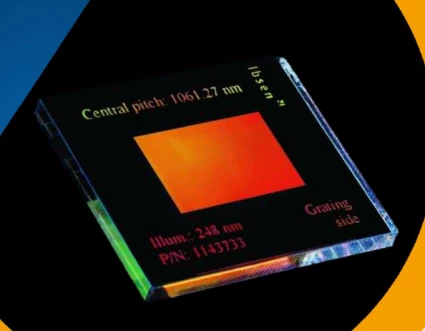

FBG Phase Mask
Specifications |
|
|---|---|
| Grating Periods: | 400 – 2500 nm |
| Illumination Wavelengths: | 193 – 800 nm |
| Period Accuracy (total): | 0.02 nm |
| Material: | UV-grade Fused Silica |
| Available Chirp Rates: | 0.01 nm/cm – 30 nm/cm |
| Guaranteed Zero Order Suppression: | <4% |
| Typical Zero Order Suppression: | 0 – 2% |
| Illumination: | 248 nm |
Features
- Holographically Produced: Manufactured in a 100% cleanroom environment for optimal precision.
- Period Accuracy and Uniformity: Achieves a remarkable accuracy of +/- 0.01 nm.
- Continuous Linear Chirp: Available chirp rates from 0.01 nm/cm to 30 nm/cm for diverse applications.
- Low Zero Order: Guaranteed zero order suppression of <4% with typical suppression between 0-2%.
- Low Defect Count: Ensures high-quality performance and reliability.
- Clear On-Mask Identification: Facilitates straightforward handling and reduces operational costs.
Applications
- ITU Filters and Add/Drop Components: Enables precise wavelength filtering for telecom networks.
- Fiber Lasers: Facilitates efficient grating inscription in laser cavities.
- LD Stabilizers: Supports wavelength locking for laser diodes.
- Gain Flattening Filters: Ensures flat gain profiles in optical amplifiers.
- Dispersion Compensation Modules: Provides accurate dispersion management for optical signals.
- Optical Sensors: Ideal for high-precision sensing applications requiring stable gratings.
Frequently Asked Questions
The FBG Phase Mask offers period accuracy down to +/- 0.1 Ångström.
The period uniformity of the FBG Phase Mask is +/- 0.01 nm.
The +1/-1 order Phase mask is optimized to diffract light equally and maximally into the plus first and minus first orders.
Ibsen offers custom specifications and various characterization reports for the FBG Phase Mask.
Yes, Ibsen offers cleaning service for the FBG Phase Mask.
