2D Diffractive Beam Splitter Grating

Coligh Optics Technology Co.,ltd

Specifications

Design Wavelength: 532 nm
Element Size: 5 mm
Document icon Download Data Sheet Download icon

Features

2D Diffractive Beam Splitter Grating Description

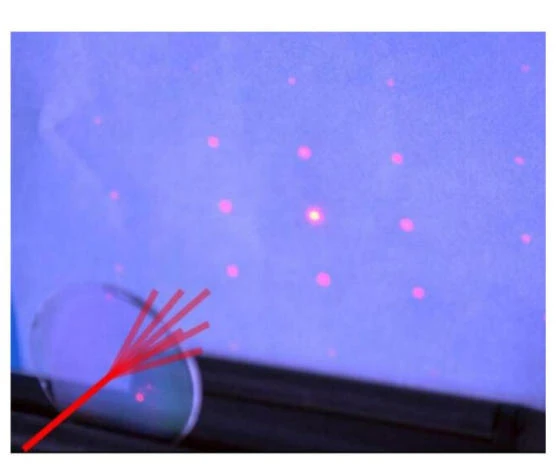

2D Diffractive Beam Splitting Gratings are optical elements with bi-directional periodic micro-nano structures machined on the substrate surface, which split a single beam of incident light into multiple beams in multiple directions through the diffraction effect, and can be simultaneously split in both X and Y.

Applications

2D Diffractive optical element  Laser Dot Matrix Generator Application



  • Medical cosmetology industry
    In the medical cosmetology industry, 2D DOE beam splitter can be used in skin laser resurfacing, fractional laser treatment, picosecond and nanosecond devices. 2D Diffractive grating can split a single laser beam into hundreds of uniform spots for large area synchronized treatment.

  • Laser Fractional
    In the laser fractional laser industry, the array beam splitter can be used for PCB laser punching, ITO punching and other scenarios, the 2D grating can split the laser energy into 2D arrays, multiple spots can be processed at the same time.

  • 3D Structural Imaging
    In the 3D structural imaging industry, 2D grating can be used in structured light 3D camera, ToF and other systems, which disperses the laser energy into a regular array of dots, and then transmits it to the surface of the object to do three-dimensional depth measurement.
