Description

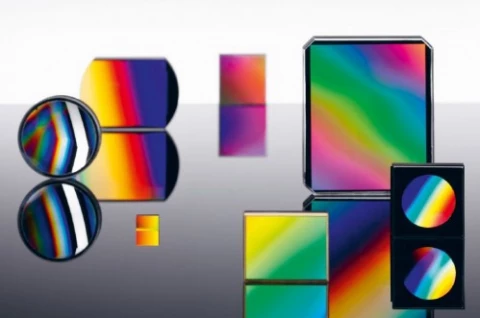

Concave diffraction gratings are diffractive optics components for compact spectrometers. By combining dispersive and imaging properties in a single element concave gratings reduce stray light, increase light intensity, and are ideal for imaging the spectrum on a diode array or a CCD/CMOS sensor. The basic form of all imaging gratings is the Rowland circle grating.
ZEISS concave gratings are produced holographically. This optimizes the focal plane and minimizes aberrations such as astigmatism, spherical aberration and coma over a wide spectral range with a range of groove profiles.
Zeiss Concave Grating 792104-0000-000
Specifications
Groove Density: | 3600 l/mm |
---|---|
Substrate Material: | Zerodur |
Radius Of Curvature: | 298.5 mm |
Applications
- Spectrographs and spectrometers
- Spectroscopy
- Scientific and industrial applications
Frequently Asked Questions
What is a concave diffraction grating?
Concave diffraction gratings are diffractive optics components for compact spectrometers that combine dispersive and imaging properties in a single element to reduce stray light, increase light intensity, and are ideal for imaging the spectrum on a diode array or a CCD/CMOS sensor.
What are the applications of Zeiss Concave Grating 792104-0000-000?
The applications of Zeiss Concave Grating 792104-0000-000 include spectrographs and spectrometers, spectroscopy, and scientific and industrial applications.
What is the groove density of Zeiss Concave Grating 792104-0000-000?
The groove density of Zeiss Concave Grating 792104-0000-000 is 3600 ± 1 l/mm.
What is the reflective coating of Zeiss Concave Grating 792104-0000-000?
The reflective coating of Zeiss Concave Grating 792104-0000-000 is aluminum (unprotected).
What is the storage and transport temperature range of Zeiss Concave Grating 792104-0000-000?
The storage and transport temperature range of Zeiss Concave Grating 792104-0000-000 is -40 °C … +70 °C (non-condensing environment).
