Description
Magnesium fluoride is a tetragonal crystal system with excellent optical and thermomechanical properties. The transmission range of magnesium fluoride is 120-7500nm, and it still has good transmission in the deep ultraviolet range. It is often used as optical component materials such as ultraviolet windows, lenses and prisms.
Our company can provide various specifications of UV single magnesium fluoride blanks and finished products.

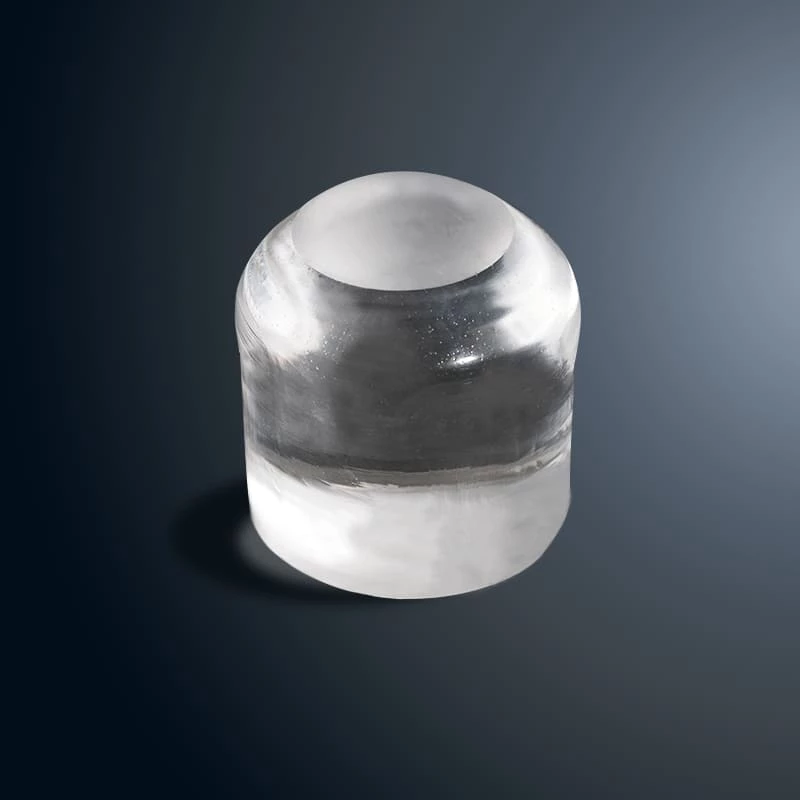

Optical Magnesium Fluoride MgF2 Crystal
Specifications
| Type Of Crystal: | Magnesium Fluoride (MgF2) |
|---|---|
| Crystal Diameter Range: | 3 – 300 mm |
| Crystal Length Range: | 3 – 300 mm |
| Wavelength Range: | 110 – 7500 nm |
| Material Grade: | UV,Deep UV,Extreme UV,Excimer laser，Low stress |
| Growing Method: | CZ |
| Wavelength Range: | 110nm-7.5μm |
| Crystal Structure: | Monocrystalline |
| Orientation: | <001>, <111>, <100> |
Download Data Sheet
Features
Magnesium fluoride is a powerful material that can be used to resist chemical corrosion, laser damage, mechanical shock and thermal shock. It is harder than calcium fluoride, but relatively soft compared to fused silica, and has a slight hydrolysis. It has a Nucleus hardness of 415 and a refractive index of 1.38.
Applications
Magnesium fluoride is often used as optical component materials such as ultraviolet windows, lenses and prisms.
