Non-Polarizing ZnSe Plate Beamsplitters for Monochromatic Beam Applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Non-Polarizing Plate Beamsplitters are a sophisticated optical component designed to divide an incident, monochromatic beam into its reflected and transmitted components according to a specified intensity ratio. These beamsplitters are crucial in applications where it is essential to maintain the polarization characteristics of the incident light. The design incorporates a plate with a dielectric, non-polarizing, partial reflection coating on one side and a high-efficiency, narrowband anti-reflection coating on the other. This meticulous engineering ensures minimal alteration to the polarization state of the light, making these beamsplitters ideal for precision optical applications.
The construction of these beamsplitters involves high-quality materials such as BK7, UVFS, and ZnSe, which are chosen for their superior optical properties. The angle of incidence is precisely set at 45º to optimize performance. Each surface is crafted to meet stringent surface figure specifications, ensuring exceptional optical clarity and minimal distortion. The careful selection of materials and coatings results in a component that delivers reliable performance across a range of optical wavelengths.
At Rocky Mountain Instrument Co., the production of Non-Polarizing Plate Beamsplitters is guided by a commitment to quality and precision. The surface quality is maintained to exacting standards, with specific tolerances for diameter, thickness, and wedge angles. This attention to detail ensures that each beamsplitter meets the rigorous demands of advanced optical systems. The collaborative approach of RMI allows for the seamless transition from prototype to production, addressing even the most technically challenging requirements with innovative solutions.
Non-Polarizing ZnSe Plate Beamsplitters for Monochromatic Beam Applications
Specifications |
|
|---|---|
| Substrate: | Zinc Selenide |
| Wavelength Range: | 9000 – 11000 nm |
| Surface Quality: | 10-5 Scratch-Dig |
| Surface Figure: | Lambda/20 @ 633nm |
| Large Dimension And Thickness: | Custom |
Features

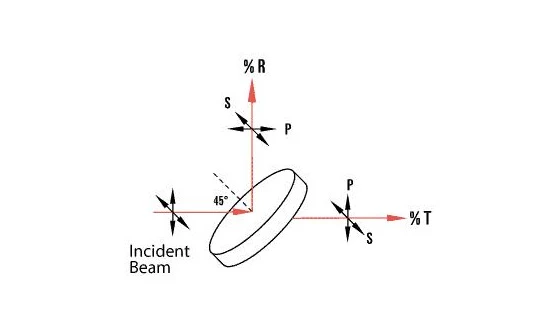

- Non-Polarizing Design: These plate beamsplitters are engineered to divide an incident, monochromatic beam into reflected and transmitted components while maintaining the polarization characteristics of the incident beam.
- High-Quality Coatings: Features an all dielectric, non-polarizing, partial reflection coating on one side and a high-efficiency, narrowband, anti-reflection coating on the other side.
- Material Options: Available in BK7, UVFS, and ZnSe materials, catering to various application needs.
- Precise Angle of Incidence: Optimized for an angle of incidence of 45º.
- Minimal Wedge: Wedge angle ≤ 3 arc minutes.
- Bevel Specifications: 0.010" – 0.030" at 45º for enhanced durability.
- Clear Aperture: Central 85% of diameter ensures maximum utility.
- Reflectance Range: Reflectance between 10% and 90% with a tolerance of ± 3%.
- Anti-Reflection Coating: Unpolarized reflectance ≤ 0.5% at 45º.
Applications
- Laser Systems: Ideal for use in laser systems where maintaining the polarization state of the beam is crucial.
- Optical Instrumentation: Suitable for optical instruments requiring precise beam splitting without altering polarization.
- Telecommunications: Used in fiber optic systems to ensure signal integrity by preserving polarization.
- Scientific Research: Utilized in experiments that require accurate control of beam intensity and polarization.
- Biomedical Applications: Essential in medical imaging equipment where polarization maintenance is necessary.
- Metrology: Employed in precision measurement tools that depend on consistent polarization characteristics.
- Industrial Automation: Applied in automated systems that require reliable and stable beam splitting capabilities.
Frequently Asked Questions
A ZnSe RMI Plate Beamsplitter is a non-polarizing plate beamsplitter that divides an incident, monochromatic beam into reflected and transmitted components with the specified intensity ratio.
ZnSe RMI Plate Beamsplitters are designed for applications in which it is necessary to maintain the polarization characteristics of the incident beam.
The surface figure of ZnSe RMI Plate Beamsplitters is λ/20 at 632 nm for BK7 and UVFS, and λ/40 at 10.6 µm for ZnSe.
The diameter tolerance for ZnSe RMI Plate Beamsplitters is + 0.000", – 0.010".
The angle of incidence for ZnSe RMI Plate Beamsplitters is 45º.
