Description

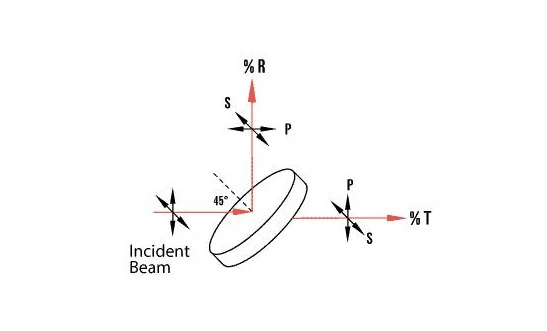

Non-Polarizing Plate Beamsplitters from Rocky Mountain Instrument Co. are expertly crafted to divide an incident, monochromatic beam into reflected and transmitted components with a specific intensity ratio. These beamsplitters are essential for applications requiring the preservation of the polarization characteristics of the incident beam. The design features a plate that is meticulously coated on one side with an all-dielectric, non-polarizing, partial reflection coating. On the reverse side, a high-efficiency, narrowband, anti-reflection coating is applied to enhance performance.
These beamsplitters are constructed using high-quality materials such as BK7, UVFS, and ZnSe, ensuring superior optical performance and durability. They are engineered to operate at an angle of incidence of 45º, which is optimal for many optical systems. The surface quality is maintained to the highest standards, with specifications such as λ/20 at 632 nm for BK7 and UVFS, and λ/40 at 10.6 µm for ZnSe, ensuring minimal wavefront distortion.
Rocky Mountain Instrument Co. prides itself on a collaborative approach with customers, addressing even the most technically challenging requirements. By engaging with clients early in the development process, RMI transitions prototype concepts into efficient, manufacturable solutions. This commitment to excellence and innovation makes RMI a trusted partner in the field of optics.
RMI Plate Beamsplitters - BK7 - UVFS
Specifications |
|
|---|---|
| Substrate: | BK7, UV Fused Silica |
| Wavelength Range: | 300 – 2000 nm |
| Surface Figure: | Lambda/20 @ 633nm |
| Surface Quality: | 10-5 Scratch-Dig |
| Large Dimension And Thickness: | Custom |
Features
- Non-Polarizing Design: These plate beamsplitters divide an incident, monochromatic beam into reflected and transmitted components while maintaining the polarization characteristics of the incident beam.
- High-Quality Coatings: The plate is coated with an all-dielectric, non-polarizing partial reflection coating on one side and a high-efficiency, narrowband anti-reflection coating on the reverse side.
- Material Options: Available in BK7, UVFS, and ZnSe materials to suit different application needs.
- Precision Angle of Incidence: Designed for a 45º angle of incidence to ensure optimal performance.
- Minimal Wedge: Wedge ≤ 3 arc minutes to ensure beam alignment accuracy.
- Bevels: 0.010" – 0.030" at 45º for safety and handling ease.
- Large Clear Aperture: Central 85% of the diameter is clear, ensuring maximum usable area.
- Adjustable Reflectance: Reflectance can be customized between 10% and 90% ± 3%.
- Anti-Reflection Coating: Unpolarized with R ≤ 0.5% at 45º to minimize losses.
Applications
- Laser Systems: Used in laser systems where it is essential to maintain the polarization characteristics of the incident beam.
- Optical Instrumentation: Ideal for applications in optical instrumentation requiring precise beam splitting without altering polarization.
- Telecommunications: Utilized in fiber optics and telecommunications systems for splitting signals while preserving polarization integrity.
- Scientific Research: Employed in laboratories for experiments that require accurate beam division with maintained polarization.
- Medical Equipment: Used in medical imaging and laser equipment where polarization consistency is crucial.
- Industrial Applications: Suitable for industrial laser applications where non-polarizing beam splitting is necessary.
- Photography and Imaging: Applied in high-end photography and imaging devices for precise light control.
Frequently Asked Questions
A non-polarizing plate beamsplitter is an optical component that divides an incident, monochromatic beam into reflected and transmitted components with the specified intensity ratio while maintaining the polarization characteristics of the incident beam.
The surface figure of RMI Plate Beamsplitters is λ/20 at 632 nm for BK7 and UVFS, and λ/40 at 10.6 µm for ZnSe.
The reflectance of RMI Plate Beamsplitters is between 10% and 90% with a tolerance of ±3%.
The angle of incidence for RMI Plate Beamsplitters is 45º.
RMI Plate Beamsplitters are made with BK7, UVFS, or ZnSe.
