Page 4 - Plate Beamsplitters

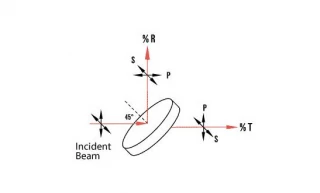

Plate Beamsplitters divide an incident, monochromatic beam into reflected and transmitted components with the specified intensity ratio. The plate is coated on one side with a polarization sensitive, partial reflection coating, and on the reverse side with a high efficiency, narrowband, anti-reflection coating.

Specifications

Largest Dimension: Not Specified
Thickness: Not Specified
Substrate: Zinc Selenide
Wavelength Range: 9000 – 11000 nm
Surface Figure: Lambda/40 @ 10600 nm

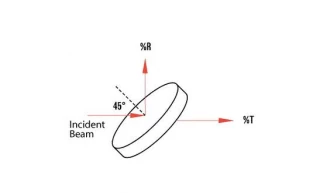

Plate Beamsplitters divide an incident, monochromatic beam into reflected and transmitted components with the specified intensity ratio. The plate is coated on one side with a polarization sensitive, partial reflection coating, and on the reverse side with a high efficiency, narrowband, anti-reflection coating.

Specifications

Largest Dimension: Not Specified
Thickness: Not Specified
Substrate: BK7, UV Fused Silica
Wavelength Range: 300 – 2000 nm
Surface Figure: Lambda/20 @ 632 nm
Non-Polarizing Plate Beamsplitters divide an incident, monochromatic beam into reflected and transmitted components with the specified intensity ratio. They are designed for applications in which it is necessary to maintain the polarization characteristics of the incident beam. The plate is coated on one side with an ...

Specifications

Largest Dimension: Not Specified
Thickness: Not Specified
Substrate: Zinc Selenide
Wavelength Range: 9000 – 11000 nm
Surface Quality: 10-5 Scratch-Dig
Non-Polarizing Plate Beamsplitters divide an incident, monochromatic beam into reflected and transmitted components with the specified intensity ratio. They are designed for applications in which it is necessary to maintain the polarization characteristics of the incident beam. The plate is coated on one side with an ...

Specifications

Largest Dimension: Not Specified
Thickness: Not Specified
Substrate: BK7, UV Fused Silica
Wavelength Range: 300 – 2000 nm
Surface Figure: Lambda/20 @ 633nm
Non-polarizing Beamsplitter Plates Non-polarizing Beamsplitter plates are primarily used to split or re-combine a beam of light, especially in high power lasers. When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the ...

Specifications

Largest Dimension: 50.8 mm
Thickness: 3 mm
Substrate: BK7
Wavelength Range: 450 – 680 nm
Thickness Tolerance: ±0.2mm

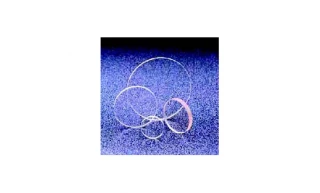

Non-polarizing Beamsplitter Plates Non-polarizing Beamsplitter plates are primarily used to split or re-combine a beam of light, especially in high power lasers. When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the ...

Specifications

Largest Dimension: 50.8 mm
Thickness: 3 mm
Substrate: BK7, Calcium Fluoride
Wavelength Range: 1200 – 1500 nm
Thickness Tolerance: ±0.2mm
Non-polarizing Beamsplitter Plates Non-polarizing Beamsplitter plates are primarily used to split or re-combine a beam of light, especially in high power lasers. When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the ...

Specifications

Largest Dimension: 25.4 mm
Thickness: 3 mm
Substrate: BK7, Calcium Fluoride
Wavelength Range: 900 – 1200 nm
Thickness Tolerance: ±0.2mm
Non-polarizing Beamsplitter Plates Non-polarizing Beam splitter plates are primarily used to split or re-combine a beam of light, especially in high power lasers. When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the ...

Specifications

Largest Dimension: 25.4 mm
Thickness: 3 mm
Substrate: BK7
Wavelength Range: 650 – 850 nm
Thickness Tolerance: ±0.2mm

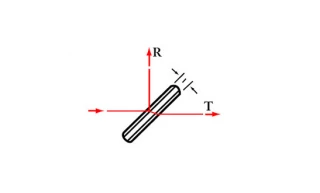

Non-polarizing Beamsplitter Plates Non-polarizing Beamsplitter plates are primarily used to split or re-combine a beam of light, especially in high power lasers. When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the ...

Specifications

Largest Dimension: 12.7 mm
Thickness: 3 mm
Substrate: BK7
Wavelength Range: 450 – 650 nm
Thickness Tolerance: ±0.2mm
Non-polarizing Beamsplitter Plates Non-polarizing Beamsplitter plates are primarily used to split or re-combine a beam of light, especially in high power lasers. When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the ...

Specifications

Largest Dimension: 25.4 mm
Thickness: 3 mm
Substrate: BK7
Wavelength Range: 633 – 633 nm
Thickness Tolerance: ±0.2mm
Non-polarizing Beamsplitter Plates Non-polarizing Beamsplitter plates are primarily used to split or re-combine a beam of light, especially in high power lasers. When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the ...

Specifications

Largest Dimension: 25.4 mm
Thickness: 3 mm
Substrate: BK7
Wavelength Range: 514 – 514 nm
Thickness Tolerance: ±0.2mm
Non-polarizing Beamsplitter Plates Non-polarizing Beamsplitter plates are primarily used to split or re-combine a beam of light, especially in high power lasers. When using Non-polarizing beamsplitter plates the two partial beams travel different optical paths. The optical paths depend on the incident angle and the thickness of the ...

Specifications

Largest Dimension: 12.7 mm
Thickness: 3 mm
Substrate: BK7
Wavelength Range: 488 – 488 nm
Thickness Tolerance: ±0.2mm
