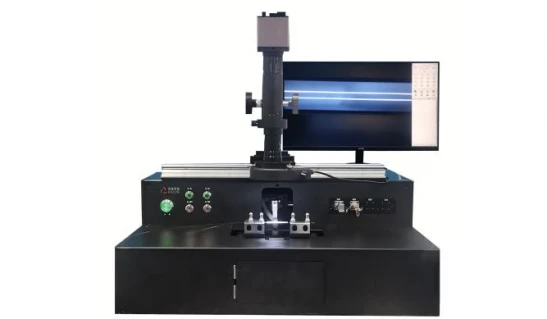

Polarization Maintaining Coupler Fiber Taper machine
Description

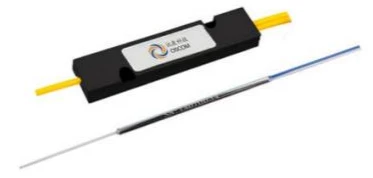

XQ7130 is mainly used to make polarization maintaining 1´2/2´2/1´3/3´3/WDM optical fiber splitter, including freely adjust various splitting ratio and wavelength. XQ7130 adapt special method to alignment panda eyes of panda fiber to realize the manufacturing of high extinction ratio devices. And integrated extinction ratio testing system further improved production efficiency. XQ7130 is stable , reliable and easy to operate.
Polarization Maintaining Coupler Fiber Taper machine
Specifications |
|
|---|---|
| Supported Fiber Cladding: | 1-1500um |
| Stretch Spacing: | 18-60 mm |
| Unilateral Stretching Speed: | 0-800 um/s |
| Holder Motion Accuracy: | 0.1/0.8 um |
| Detector Type: | InGaAs |
| Wavelength Range: | 800-1700 nm |
| Optical Power Detection Dynamic Range: | -60 - +3 dBM |
Features
1.optical fiber sensing
2.Polarization-preserving fiber amplifier
3.Optical detection equipment
Applications
Please contact with me: wudan@szoscom.com +86 18779642396 Danniella
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The XQ7130 machine is mainly used to make polarization maintaining optical fiber splitters with various splitting ratios and wavelengths.
The XQ7130 machine uses a special method to align the panda eyes of panda fiber, which helps in manufacturing high extinction ratio devices.
Yes, the XQ7130 machine is equipped with an integrated extinction ratio testing system, which improves production efficiency.
Yes, the XQ7130 machine is known for its stability, reliability, and ease of operation.
The specifications of the XQ7130 machine include stretch spacing, heater scan width, unilateral stretching speed, holder motion accuracy, and more.
