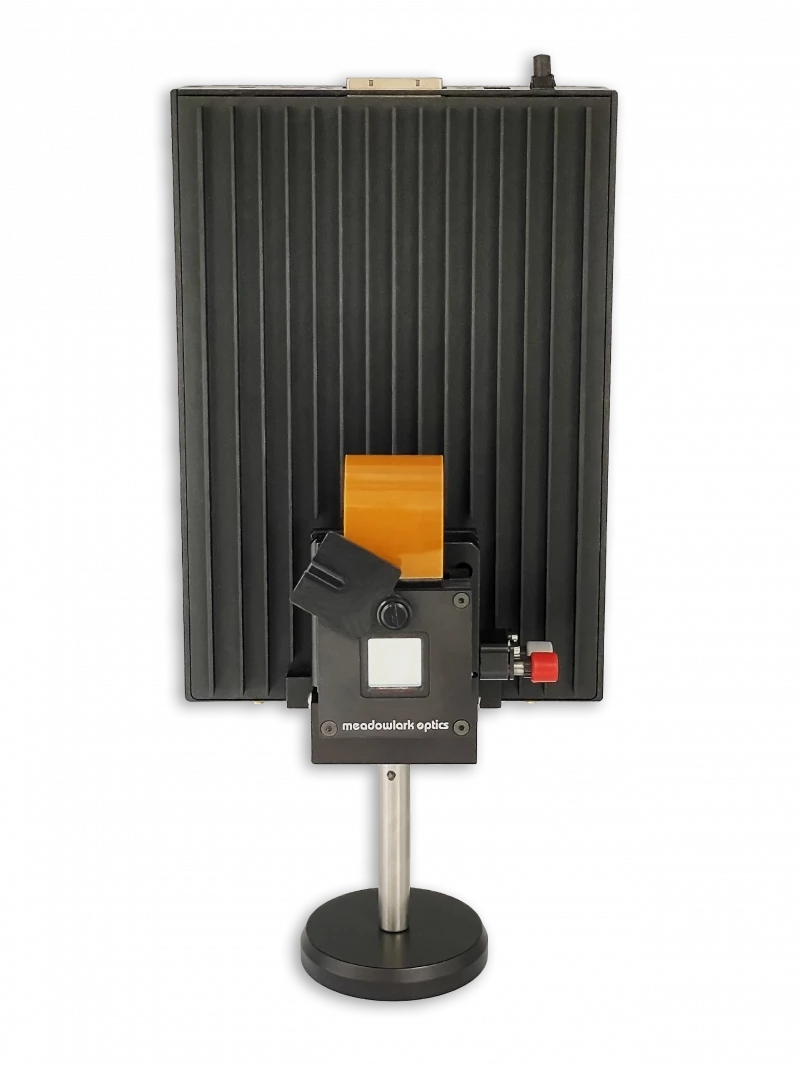

Meadowlark Optics HSP1K (1024 x 1024) Spatial Light Modulator (SLM)

Visit the Meadowlark Optics Inc Store

Specifications

Type: Liquid Crystal on Silicon (LCoS)
Pixel Pitch: >10 µm
Modulation Type: Phase
Wavelength Range: Visible (400-700 nm), Near-IR (700-1400 nm), IR (>1400 nm), Other
Response Time: <1 ms, 1-10 ms
Refresh Rate: <1 kHz, 1-5 kHz

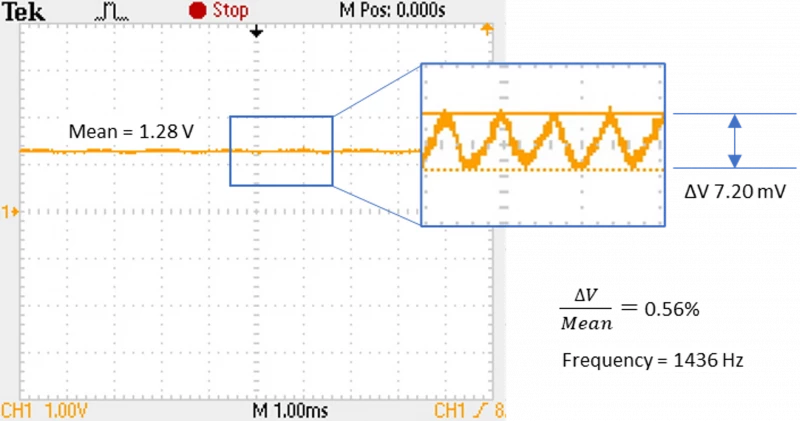

Phase Stability: <0.1%, 0.1%-0.5%, >0.5%
Diffraction Efficiency: 50%-90%, >90%
Interface: Custom
Input Signal: Analog
Power Handling: <0.5 W, 1-3 W, 3-6 W, > 6 W
LC Response Time (Up To, @532nm): ≤ 1.0 ms
LC Switching Speed (minimum, @532nm): 1,000 Hz
Pixel Pitch: 17 um
Backplane Refresh Rate: 1.4 kHz
Pixels: 1024 x 1024 pixels
MWIR Capability: This device is MWIR capable up to 6000 nm.
Interface: PCIe
Dielectric Mirror Capability: This device is capable of having a >90% diffraction efficiency with dielectric mirror coating applied to the pixels.
Document icon Download Data Sheet Download icon

Features


  • High Resolution

  • High Speed

  • High Phase Stability

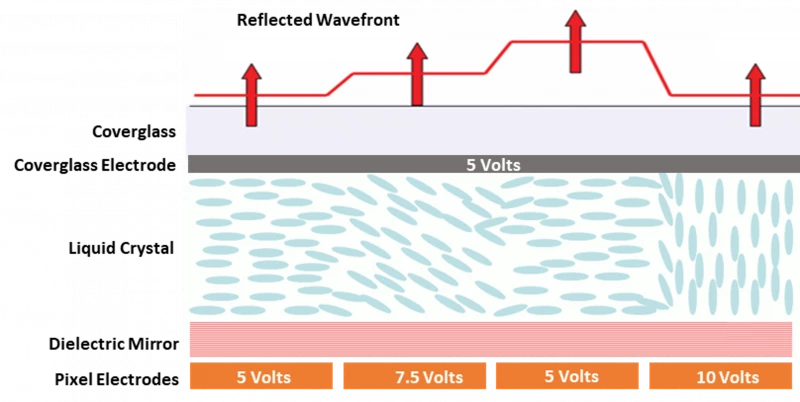

  • Pure Analog Phase Control

  • High First-Order Efficiency

  • High Reflectivity

  • High Power Handling

  • On-Board Memory

  • Wavelengths From 488-1650 nm

  • MWIR Capability (2000-6000 nm)

Applications


  • Wavefront Engineering

  • Holographic Two-Photon Lithography

  • Multimode Fiber Imaging

  • Holographic Ensemble Stimulation

  • Sensorless Adaptive Optics

  • 3D Structured Illumination Microscopy

  • Imaging In Scattering or Turbid Media

  • Volumetric Imaging

  • Optogenetics

  • Fiber-Based Optical Manipulation

  • Psf Engineering

  • General Microscopy

  • Holographic Optical Tweezing (Hot)

  • Pulse Shaping

  • Optical Encryption

  • Quantum Computing

  • Advanced Imaging

  • Optical Communications

  • Quantum Optics

  • Tamper Indication

  • 3D Printing

  • Turbulence Simulation

  • Unique Modulators

  • Scene Generation

  • 3D Mapping of Neural Circuits
