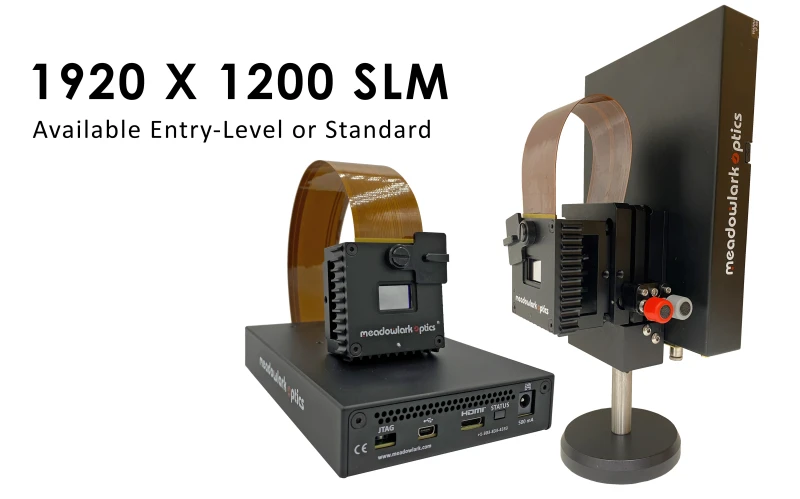

Meadowlark Optics S19X12 (1920 x 1200) Spatial Light Modulator (SLM) 10-bit

Visit the Meadowlark Optics Inc Store

Specifications

Type: Liquid Crystal on Silicon (LCoS)
Pixel Pitch: 5-10 µm
Modulation Type: Phase
Wavelength Range: Visible (400-700 nm), Near-IR (700-1400 nm), IR (>1400 nm)
Response Time: >10 ms
Refresh Rate: <1 kHz
Phase Stability: <0.1%, 0.1%-0.5%
Diffraction Efficiency: 50%-90%, >90%
Interface: HDMI
Input Signal: Not Specified
Power Handling: <0.5 W, 1-3 W, 3-6 W
Pixel Pitch: 17 um
Backplane Refresh: 1.35 kHz
Pixels: 1920 x 1200 Pixels
Phase Resolution (Bit-Depth): 10 bits
Document icon Download Data Sheet Download icon

Features


  • Entry-Level

  • 1920 x 1200 Resolution

  • Pure Analog Phase Control

  • High Phase Stability – as low as 0.025%

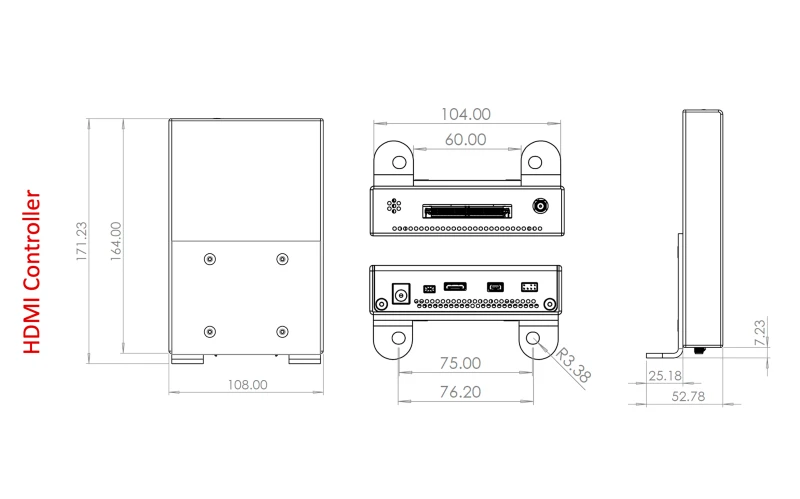

  • 60 Hz HDMI Controller with Output Trigger

  • 10-bit Phase Resolution

Applications


  • Wavefront Engineering

  • Holographic Two-Photon Lithography

  • Multimode Fiber Imaging

  • Holographic Ensemble Stimulation

  • Sensorless Adaptive Optics

  • 3D Structured Illumination Microscopy

  • Imaging In Scattering or Turbid Media

  • Volumetric Imaging

  • Optogenetics

  • Fiber-Based Optical Manipulation

  • Psf Engineering

  • General Microscopy

  • Holographic Optical Tweezing (Hot)

  • Pulse Shaping

  • Optical Encryption

  • Quantum Computing

  • Advanced Imaging

  • Optical Communications

  • Quantum Optics

  • Tamper Indication

  • 3D Printing

  • Turbulence Simulation

  • Unique Modulators

  • Scene Generation

  • 3D Mapping of Neural Circuits
