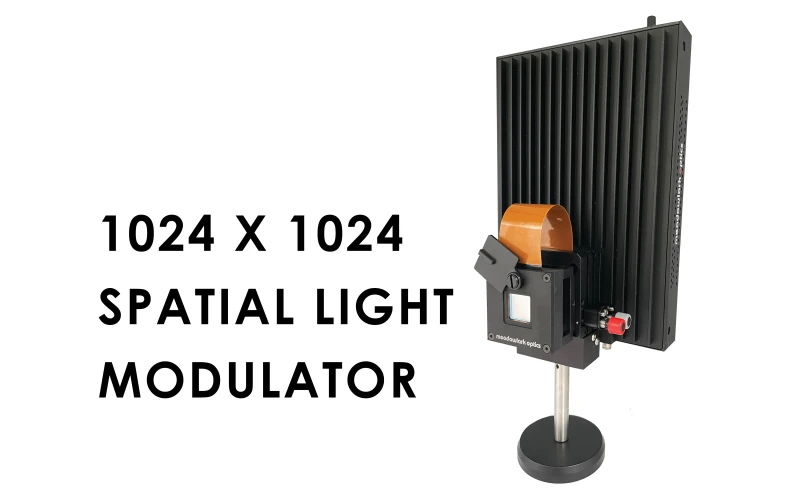

Meadowlark Optics UHSP1K (1024 x 1024) Spatial Light Modulator (SLM)

Visit the Meadowlark Optics Inc Store

Specifications

Type: Liquid Crystal on Silicon (LCoS)
Pixel Pitch: >10 µm
Modulation Type: Phase
Wavelength Range: Visible (400-700 nm), Near-IR (700-1400 nm), IR (>1400 nm), Other
Response Time: <1 ms, 1-10 ms
Refresh Rate: <1 kHz, 1-5 kHz
Phase Stability: 0.1%-0.5%, >0.5%
Diffraction Efficiency: 50%-90%, >90%
Interface: Custom
Input Signal: Analog
Power Handling: <0.5 W, 1-3 W, 3-6 W
LC Response Time (Up To, @532nm): ≤ 0.6 ms
LC Switching Speed (minimum, @532nm): 1.66 kHz
Pixel Pitch: 17 um
Backplane Refresh Rate: 1.436 kHz
Pixels: 1024 x 1024 pixels
MWIR Capability: >2um devices available
Document icon Download Data Sheet Download icon

Features

  • High resolution
  • High speed High
  • Phase Stability
  • Pure analog phase control
  • High first order efficiency
  • High reflectivity
  • High power handling
  • On-board Memory
  • Wavelengths from 488-1650 nm
  • MWIR Operation Capable

Applications

  • Wavefront Engineering
  • Holographic Two-Photon Lithography
  • Multimode Fiber Imaging
  • Holographic Ensemble Stimulation
  • Sensorless Adaptive Optics
  • 3D Structured Illumination Microscopy
  • Imaging In Scattering or Turbid Media
  • Volumetric Imaging
  • Optogenetics
  • Fiber-Based Optical Manipulation
  • Psf Engineering
  • General Microscopy
  • Holographic Optical Tweezing (Hot)
  • Pulse Shaping
  • Optical Encryption
  • Quantum Computing
  • Advanced Imaging
  • Optical Communications
  • Quantum Optics
  • Tamper Indication
  • 3D Printing
  • Turbulence Simulation
  • Unique Modulators
  • Scene Generation
  • 3D Mapping of Neural Circuits
