Description
Meadowlark Optics’ Retardance Measurement Station, Model TB1000, is the first commercial product for high precision measurements of waveplates. Customer demand triggered the development of the TB1000. This turnkey, fully-enclosed system measures the retardance of multi-order waveplates and same-material compound zero-order waveplates (Sapphire, Magnesium Fluoride, and Quartz). The TB1000 is versatile and portable and can be easily moved from the R&D lab to the production floor, bringing the precision of Meadowlark Optics Metrology Services from our lab to yours. Retardance measurements are obtained in under 2 seconds with the userfriendly software in just one click.

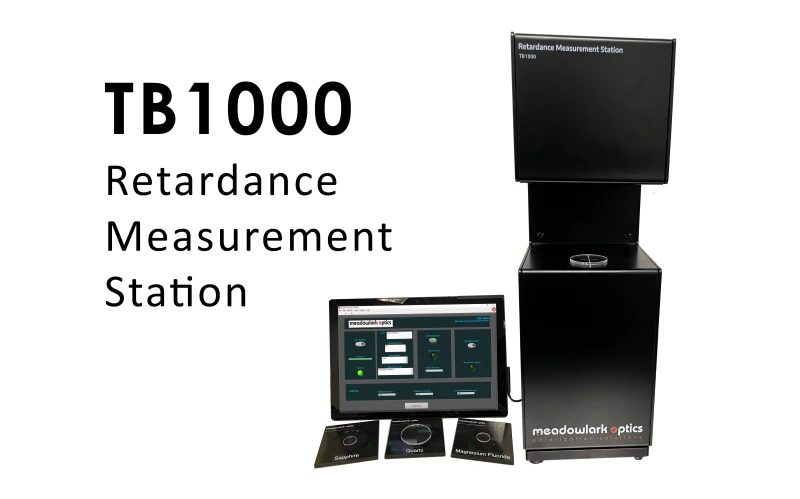

Meadowlark Optics Retardance Measurement Station (TB1000)
Specifications
| Retardance Accuracy (@633nm): | 0.005 waves |
|---|---|
| Retardance Range (@633nm): | 0.1-45 waves |
| Wavelength Measurement Range: | 380-4500 nm |
| Maximum Optic Size: | 8.2 in |
| Measurement Spot Diameter: | 3.8 mm |
| Waveplate Crystal Types Acceptable: | Quartz, Sapphire, Magnesium fluoride |
| Interface: | USB 2.0 |
| Measurement Rate: | <2 seconds |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Retardance measurements in under 2 seconds with one-click
- Highly Repeatable
- Fast Axis Alignment Check
- Automatic Dark and Bright Reference

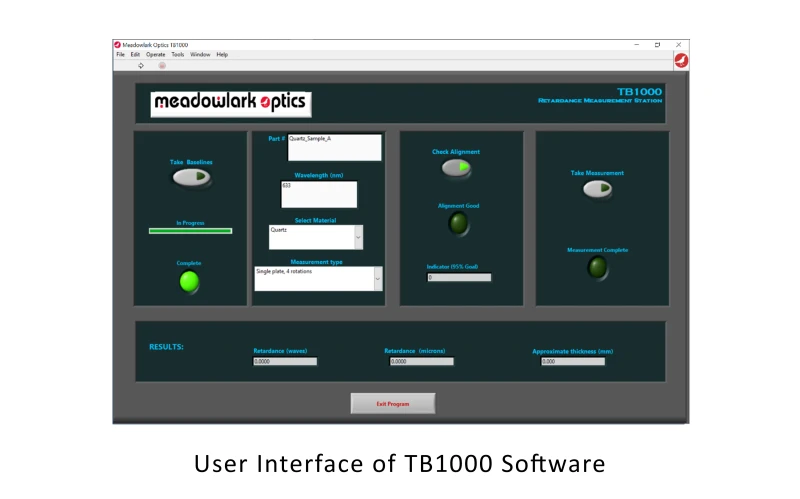

- User-friendly Software Interface

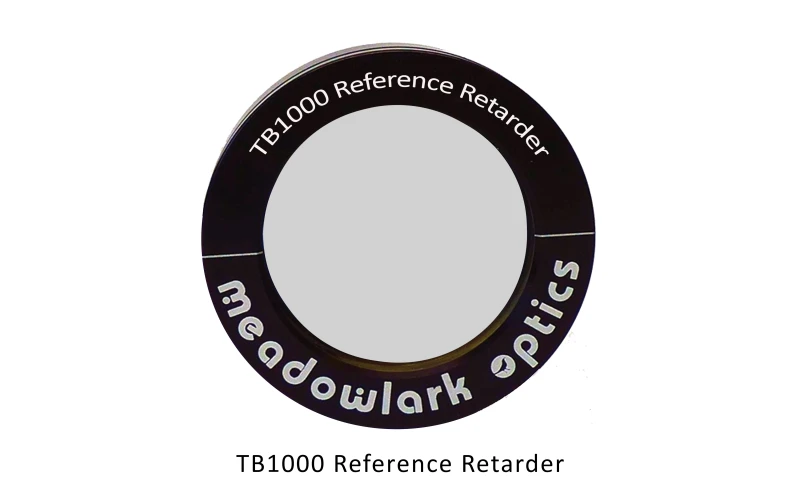

- Reference Retarder Included
Applications
Retardance Measurement for Manufacturing or Crystal Suppliers
