Description

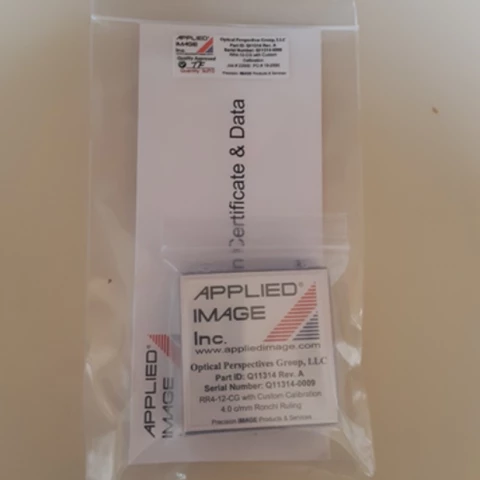

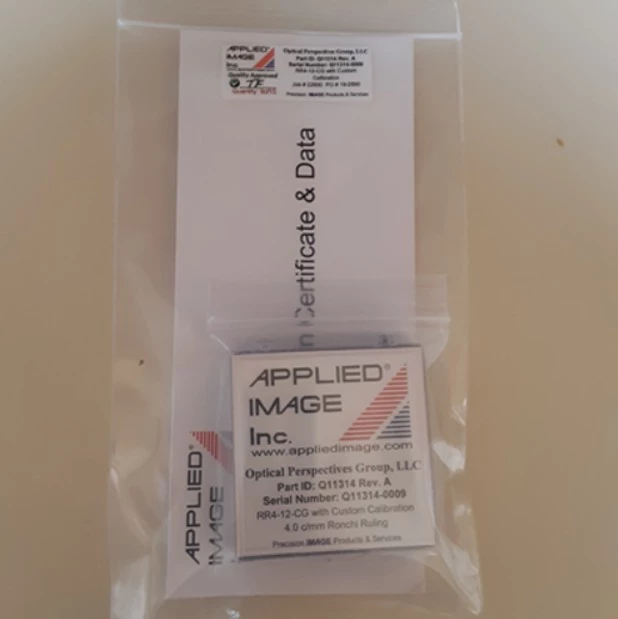

The Calibration Package for PSM is a product offered by Optical Perspectives Group (OPG) that provides a NIST traceable square wave grating with 4 lp/mm spacing for calibrating the lateral scale of the PSM and other optical instruments. The package includes a 64 mm square glass substrate with a 25 mm square chrome square wave line pair pattern, a calibration certificate showing traceability to NIST, and a sheet with the actual calibration data. The square wave grating is used to ensure that the magnification is set correctly for crucial measurements.
NIST-Traceable Square Wave Grating for PSM Calibration
Specifications
| Grating Spacing: | 4 lp/mm |
|---|---|
| Glass Substrate Size: | 64 mm square |
| Square Wave Pattern Size: | 25 mm square |
| Calibration Certificate: | Included |
| Calibration Data Sheet: | Included |
Download Data Sheet
Features
- NIST traceable square wave grating with 4 lp/mm spacing
- Calibration certificate showing traceability to NIST
- Sheet with actual calibration data
- Ensures magnification is set correctly for crucial measurements
Applications
- Calibrating the lateral scale of the PSM and other optical instruments
