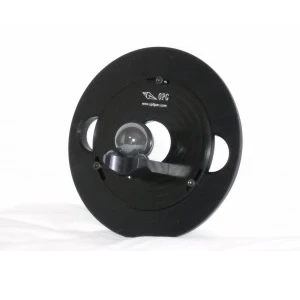

Thumbnail of CaliBall II Horizontal Interferometer Calibration Device photo 1

Description

The CaliBall II is used in horizontal interferometer set ups and is held in a Zygo type 4” bayonet mount that provides the adjustments to align the CaliBall II to the transmission sphere.

The CaliBall™ II comes with all the same components as CaliBall™ I but it is better suited for use with horizontal looking interferometers that are equipped with a Zygo style 4” bayonet mount with x-y-z adjustments CaliBall™ II does not need a separate x-y-z mount because the bayonet mount performs this function.

The Random Ball Test* has been reviewed in papers by authors at both NIST and CSIRO who conclude they are not aware of a better method of transmission sphere calibration.

CaliBall II Horizontal Interferometer Calibration Device

Visit the Optical Perspectives Group, LLC Store
Document icon Download Data Sheet Download icon

Features

  • Suitable for use with horizontal looking interferometers with Zygo style 4” bayonet mount
  • Comes with all the same components as CaliBall I
  • Bayonet mount provides x-y-z adjustments
  • Random Ball Test has been reviewed in papers by authors at both NIST and CSIRO who conclude they are not aware of a better method of transmission sphere calibration

Applications

  • Calibration of transmission spheres in horizontal interferometer set ups
  • Suitable for use with interferometers equipped with a Zygo style 4” bayonet mount with x-y-z adjustments

Frequently Asked Questions

What is the CaliBall II used for?
The CaliBall II is used in horizontal interferometer set ups for calibration of transmission spheres.
What type of mount does the CaliBall II have?
The CaliBall II is held in a Zygo style 4" bayonet mount.
Does the CaliBall II come with x-y-z adjustments?
Yes, the bayonet mount of the CaliBall II provides x-y-z adjustments.
Are there any other components included with the CaliBall II?
The CaliBall II comes with all the same components as CaliBall I.
Has the Random Ball Test been reviewed by any experts?
Yes, the Random Ball Test has been reviewed in papers by authors at both NIST and CSIRO who conclude they are not aware of a better method of transmission sphere calibration.
