Description
The UD10-2-H5-L is an uncalibrated thermal disk sensor designed for precise laser power measurement up to 2 W. With a broad spectral range of 0.19 - 20 μm, this sensor is ideal for a wide variety of applications that require accurate power measurement. The sensor features an exceptionally thin profile, starting at just 2 mm in thickness, which allows for integration into compact systems. The UD10-2-H5-L offers flexibility with different aperture sizes, ranging from 10 mm to 55 mm, and provides two levels of integration: the disk alone or the disk with a PCB.
With a maximum power density of 36 kW/cm² and maximum energy density of 1 J/cm², this sensor is capable of measuring high-intensity laser beams. Its noise equivalent power is just 0.1 mW, ensuring high sensitivity. The sensor’s energy measurement capability extends up to 3 J, with a noise equivalent energy of 5 mJ. It is designed to deliver accurate performance, providing a solution for demanding laser power and energy measurement tasks.
Gentec-EO UD10-2-H5-L Uncalibrated Thermal Disk Sensor
Specifications

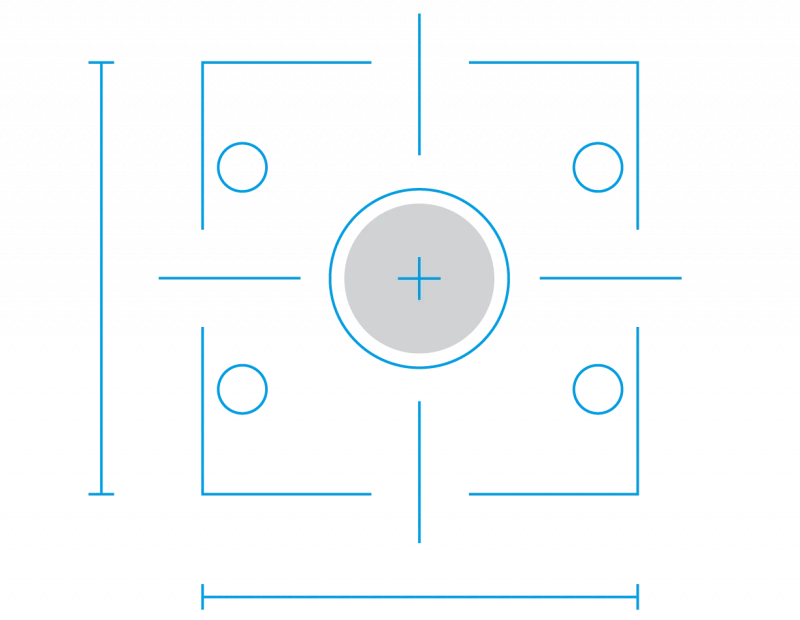

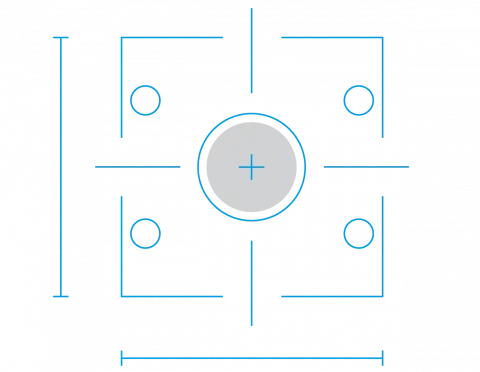

Max Measurable Energy: | 200 mJ |
---|---|
Max Repetition Rate: | 10000 Hz |
Effective Aperture: | 10 mm |
Spectral Range: | 0.19 – 20 um |
Maximum Average Power: | 2 W |
Maximum Average Power (fan-cooled): | 2 W |
Noise Equivalent Power: | 0.12 mW |
Typical Rise Time: | 3.0 s |
Typical Power Sensitivity: | 2 mV/W |
Recommended Load Impedance: | 100 kΩ |
Typical Energy Sensitivity: | 2.4 mV/J |
Maximum Measurable Energy: | 3 J |
Noise Equivalent Energy: | 5.0 mJ |
Maximum Average Power Density: | 36 kW/cm² |
Maximum Energy Density: | 1 J/cm² |
Absorber: | H5 |
Dimensions: | 44Ø x 3D mm |
Weight: | 0.007 kg |
Features
- Laser Power Measurement: Capable of measuring laser power up to 2 W
- Fan-Cooled Option: Suitable for applications that require fan-cooled operation
- High Sensitivity: Offers a noise equivalent power of 0.1 mW for precise measurements
- Wide Spectral Range: Covers the spectral range from 0.19 to 20 μm
- Typical Rise Time: Provides a typical rise time of 3.0 s
- Power Sensitivity: Exhibits a typical power sensitivity of 2 mV/W
- Recommended Load Impedance: Designed for use with a load impedance of 100 kΩ
Applications
- Laser Power Measurement: Essential for measuring laser power output accurately
- Research and Development: Ideal for laser research and development projects
- Industrial Laser Processes: Used in various laser-based industrial applications
- Quality Control: Ensures laser systems meet quality and performance standards
Frequently Asked Questions
What is the Gentec-EO UD10-2-H5-L thermal sensor disk used for?
What are the features of the Gentec-EO UD10-2-H5-L thermal sensor disk?
What are the levels of integration available for the Gentec-EO UD10-2-H5-L thermal sensor disk?
What is the maximum average power of the Gentec-EO UD10-2-H5-L thermal sensor disk?
What is the noise equivalent power of the Gentec-EO UD10-2-H5-L thermal sensor disk?
