Description
The Gentec-EO QE series is a robust line of high performance and high accuracy pyroelectric joulemeters that are designed to measure laser energy. Each modular unit is built for durability, compactness and ease of operation.
The QE optical absorber exhibits high damage thresholds and can operate at high rep-rates. The QE series can be used to even higher energy levels with QED attenuator / diffuser.

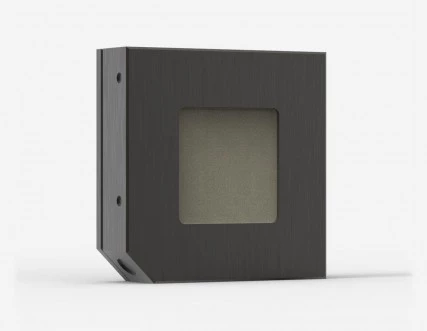

Gentec-EO Pyroelectric Detector QE25LP-S-MB-D0
Specifications
| Max Measurable Energy: | 3800 mJ |
|---|---|
| Max Repetition Rate: | 300 Hz |
| Effective Aperture: | 25 mm |
| Spectral Range: | 0.19 – 20 um |
| Maximum Measurable Energy: | 3.8 J |
| Spectral Range: | 0.19 - 20 μm |
| Typical Rise Time: | 550 µs |
| Repeatability: | <0.5% |
| Maximum Repetition Frequency: | 300 Hz |
| Typical Energy Sensitivity: | 10 V/J |
| Noise Equivalent Energy: | 4 μJ |
| Maximum Pulse Width: | 400 μs |
| Energy Calibration Uncertainty: | ±3 % |
| Maximum Average Power Density: | 10 W/cm² |
| Maximum Energy Density: | 0.6 J/cm² |
| Maximum Power: | 5 W |
| Aperture Width: | 25 mm |
| Aperture Height: | 25 mm |
| Dimensions: | 50H x 50W x 14D mm |
| Weight: | 0.12 kg |
Download Data Sheet
Features
- QE series uses a DB-15 male "Smart Interface" connector with a memory chip, programmed with calibration sensitivity, spectral correction factors at different wavelengths, and joulemeter-specific data.
- Automatic adjustment of Gentec-EO displays or PC interfaces to the connected joulemeter's characteristics.
- INTEGRA connector option available for connection to computers or tablets using free
- PC-GENTEC-EO software, also programmed with calibration sensitivity, spectral correction factors, and specific joulemeter data.
- INTEGRA connection options include USB, RS-232, or USB with external trigger.
- High intrinsic responsivity and insensitivity to electromagnetic interference in every QE series joulemeter.
- Wide dynamic range allowing energy measurement from UV to far IR.
- Custom QE series joulemeters with analog output for oscilloscope or OEM acquisition system use.
Applications
- Laser energy measurements
- Laser optics
- Spectroscopy
- Metrology
Frequently Asked Questions
What is the Gentec-EO QE series used for?
The Gentec-EO QE series is used for measuring laser energy.
What is the maximum measurable energy of the QE25LP-S-MB-D0 laser energy meter?
The maximum measurable energy of the QE25LP-S-MB-D0 is 23.8 J.
What is the noise equivalent energy of the QE25LP-S-MB-D0 laser energy detector?
The noise equivalent energy of the QE25LP-S-MB-D0 is 34 μJ.
What is the spectral range of the QE25LP-S-MB-D0?
The spectral range of the QE25LP-S-MB-D0 is 0.19 - 20 μm.
What is the weight of the QE25LP-S-MB-D0 energy detector?
The weight of the QE25LP-S-MB-D0 is 0.12 kg.
