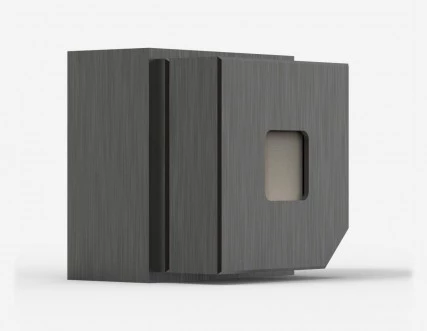

Gentec-EO Pyroelectric Detector QE12SP-H-MT-D0

Visit the Gentec-EO Store

Specifications

Max Measurable Energy: 700 mJ
Max Repetition Rate: 6000 Hz
Effective Aperture: 12 mm
Spectral Range: 0.19 – 20 um
Maximum Measurable Energy: 0.7 J
Spectral Range: 0.19 - 20 μm
Typical Rise Time: 20 µs
Repeatability: <0.5%
Maximum Repetition Frequency: 6000 Hz
Typical Energy Sensitivity: 100 V/J
Noise Equivalent Energy: 0.8 μJ
Maximum Pulse Width: 10 μs
Energy Calibration Uncertainty: ±3 %
Maximum Average Power Density: 10 W/cm²
Maximum Energy Density: 0.5 J/cm²
Maximum Power: 5 W
Aperture Width: 12 mm
Aperture Height: 12 mm
Dimensions: 36H x 36W x 33D mm
Weight: 0.12 kg
Document icon Download Data Sheet Download icon

Features


  • The QE series benefits from the use of a DB-15 male, “Smart Interface” connector, containing a memory chip programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific Q series joulemeter head. This connector permits the Gentec-EO display or PC interfaceo automatically adjust to the characteristics of the joulemeter being connected.

  • All QE series detectors are also available with the INTEGRA connector. This option only needs a computer or tablet PC using the free software PC-GENTEC-EO. It is also programmed with the calibration sensitivity, the spectral correction factors at different wavelengths and other data relating to the specific QE series joulemeter head. The INTEGRA options are USB, RS-232 or USB with external trigger.

  • Every QE series joulemeter features high intrinsic responsivity and high insensitivity to electromagnetic interference.

  • The QE series also offers an exceptionally wide dynamic range and permits energy measurement from UV to far IR.

  • The QE series joulemeters are also available as custom products with analog output to be used with an oscilloscope or an OEM acquisition system.

Applications

The QE12SP-H-MT-D0 is a versatile pyroelectric laser energy detector by Gentec-EO, designed for precise laser energy measurements across a wide spectral range of 0.19 - 20 µm. It boasts a maximum energy measurement of 0.7 J with a low noise level, making it highly accurate for various applications. Its compatibility with different cooling modules and the optional QED attenuator allows for measurements of higher energy levels, enhancing its utility in laser optics, where it supports a wide array of laser types and high-repetition-rate systems up to 6000 Hz. For spectroscopy, its precise energy quantification and broad calibration options make it suitable for techniques requiring exact laser control. In metrology, the detector's high repeatability and detailed calibration data ensure reliable measurements, essential for accurate scientific and industrial applications.


Common application areas:



  • Laser energy measurements

  • Laser optics

  • Spectroscopy

  • Metrology
